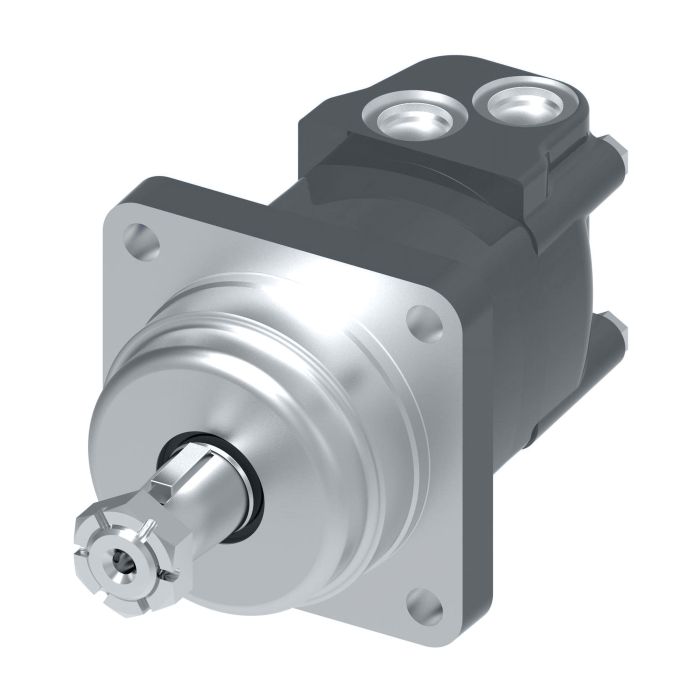

main product photo

CHAR-LYNN MOTOR

Ask A Question

Description & Features

Eaton Char-Lynn motor, part of the 2000 Series Disc Geroler wheel motor line, is designed for a range of applications including swing motors, brush cutters, mowers, and harvesting equipment. This Char-Lynn motor offers standard, wheel, and bearingless configurations.

This hydraulic motor features a 75 liter per minute flow rate and a torque rating of 385 newton meters. The highly efficient Geroler design provides energy savings while delivering reliable performance. Constructed from durable cast iron.

SKU: 105-1003

Supplier Part Number (MPN): 105-1003-006

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Design Code
6
Dimensions
8.33 in L x 5.28 in W x 5.28 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
130
Housing Material
Iron
Motor Function
1-Speed
Mounting Type
4-Bolt Wheel Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
Without Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Segment Code
A
Series
2000 Series
Shaft Type
Tapered Square Keyed
Valve Type
Disc

Product Questions & Answers (1)

Question by: Lyle P on Dec 3, 2025, 2:04 PM
Running a brush cutter setup and need something that'll hold up to real work. What kind of torque output are we talking on this motor?
Answer by: Customer Support on Dec 5, 2025, 10:34 AM
At 385 newton metres, there's solid pulling power here for demanding rotary cutter applications. That rating puts it well within range for brush cutting and mowing equipment where you need consistent torque without the motor bogging down under load. The Geroler design also helps keep efficiency up, so you're not wasting horsepower getting heat instead of work out of it.
