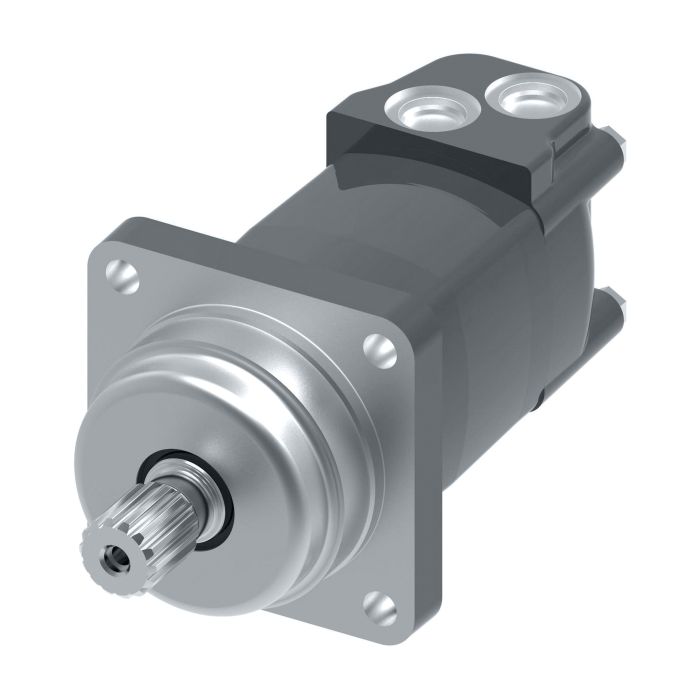

CHAR-LYNN 2000 SER MOTOR

Ask A Question

Description & Features

This Eaton Char-Lynn 2000 Series motor is a highly efficient Geroler motor that provides energy savings in demanding hydraulic applications.

Featuring standard, wheel or bearingless configurations, this Char-Lynn 2000 SER MOTOR is suitable for swing motors, brush cutters and mowers, and harvesting equipment. It delivers a torque rating of 765 newton metres and a flow rate of 75 litres per minute. Constructed of durable cast iron, it offers the lowest pressure drop in the industry. Width: 5.28.

SKU: 105-1035

Supplier Part Number (MPN): 105-1035-006

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Design Code
6
Dimensions
8.47 in L x 5.28 in W x 5.28 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
305
Housing Material
Iron
Motor Function
1-Speed
Mounting Type
4-Bolt Wheel Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
Without Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Segment Code
B
Series
2000 Series
Shaft Type
Splined
Valve Type
Disc

Product Questions & Answers (3)

Question by: Shawn H on Feb 27, 2026, 2:25 PM
What kind of applications does this motor work for? Looks like I might need it for a swing motor on some equipment we're building.
Answer by: Customer Support on Mar 1, 2026, 6:37 AM
Commonly found on swing motors, this Char-Lynn 2000 series motor is also used in brush cutters, mowers, and harvesting equipment.
Question by: Harold H on Apr 26, 2025, 1:59 PM
got a brush cutter that needs a swing motor, is this Char-Lynn 2000 series one the kind folks use for that?
Answer by: Customer Support on Apr 28, 2025, 11:42 AM
Common uses for the Char-Lynn 2000 Series disc Geroler wheel motor include swing motor duty, along with brush cutters and mowers, and harvesting equipment.
Question by: Brett T on Jul 22, 2025, 4:41 PM
Running a brush cutter setup and trying to figure out if this motor's got enough torque to hold up to the work. What kind of output are we talkin here?
Answer by: Customer Support on Jul 24, 2025, 3:35 PM
Rated at 765 Newton metres of torque, this is a serious motor for heavy-duty cutting applications. Brush cutters and mowers are actually listed as intended uses for this unit, so it fits right in with that kind of work. The Geroler design also keeps efficiency high, which means you're not burning extra flow just to get that torque to the output.
