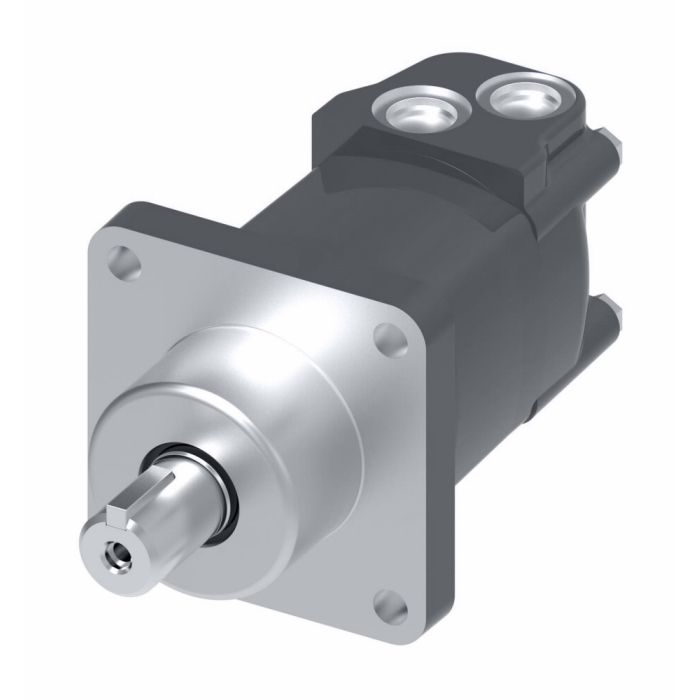

main product photo

CHAR LYNN M02149AR02AA0100010000000AAAAF

Ask A Question

Description & Features

Designed for demanding mobile hydraulic applications, the Char-Lynn M02149AR02AA0100010000000AAAAF is a 2000 Series Disc Geroler wheel motor built for use in swing motors, brush cutters, mowers, and harvesting equipment. Constructed from cast iron, it delivers a torque rating of 660 Nm and supports flow rates up to 75 litres per minute.

The Geroler motor design produces a notably low pressure drop, contributing to efficient energy use across the drive system. Available in standard, wheel, and bearingless configurations, it offers installation flexibility to suit varied equipment setups. This motor is part of the Danfoss/Eaton Char-Lynn range, a well-established product line in low-speed, high-torque hydraulic motor applications.

SKU: 105-1561-006

Supplier Part Number (MPN): 105-1561-006

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Color
Black
Design Code
6
Dimensions
8.03 in L x 5.28 in W x 5.28 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
245
Housing Material
Iron
Motor Function
1-Speed
Mounting Type
4-Bolt Wheel Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Series
2000 Series
Shaft Type
Straight Square Keyed
Valve Type
Disc

Product Questions & Answers (2)

Question by: Carl M on Jan 10, 2026, 9:55 PM
Can this motor handle tough conditions like what you'd see on a brush cutter all day long?
Answer by: Customer Support on Jan 11, 2026, 9:57 PM
This Char-Lynn motor is constructed from cast iron, which makes it durable enough for demanding applications like brush cutters, mowers, and harvesting equipment.
Question by: Harvey B on Dec 16, 2025, 6:42 AM
Running a brush cutter setup and need something that can put out real torque without eating up a ton of pressure across the system. This motor rated for that kind of work?
Answer by: Customer Support on Dec 17, 2025, 8:59 PM
At 660 Nm of torque, it handles the demands of brush cutter and mower applications without much trouble. The Geroler design is worth noting here because it produces one of the lowest pressure drops in its class, so you're not bleeding efficiency through the motor itself. That translates to less heat buildup and better overall performance from your hydraulic system. Flow rate tops out at 75 litres per minute, which suits the low-speed, high-torque duty these machines typically call for.
