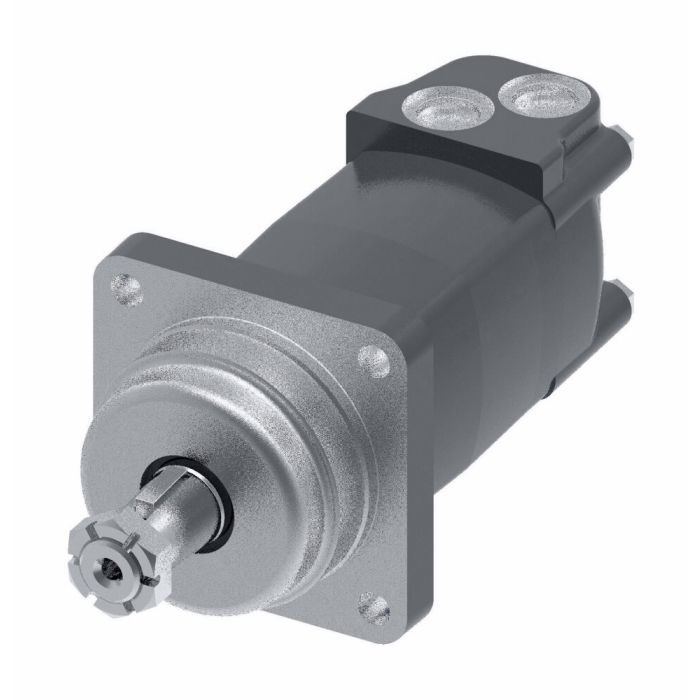

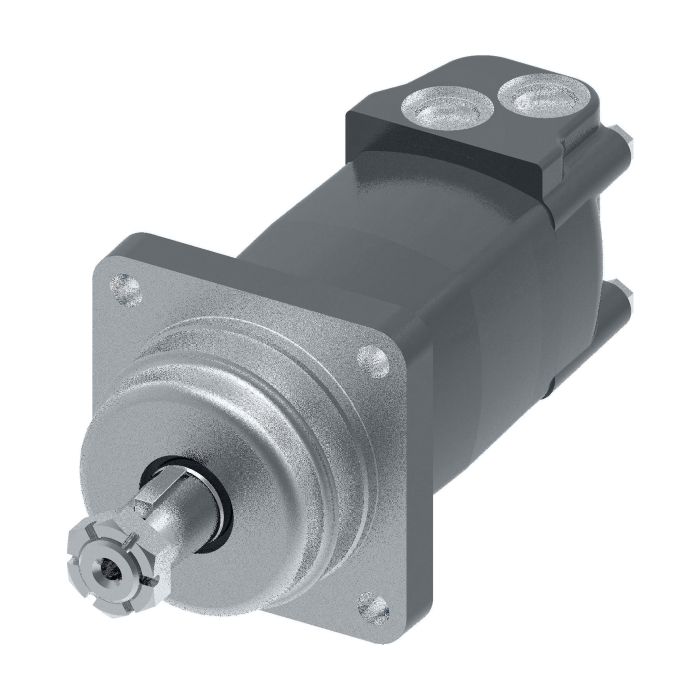

main product photo

M02240AB03AA0100016000000ABAAF

Ask A Question

Description & Features

Designed for aerial work platforms and turf care equipment, this cast iron Geroler motor delivers a torque rating of 775 Nm and supports flow rates up to 75 litres per minute. The disc Geroler design is recognized for producing one of the lowest pressure drops available in its class, contributing directly to energy efficiency across hydraulic drive circuits.

The M02240AB03AA0100016000000ABAAF is a Char-Lynn 2000 Series unit available in standard, wheel, and bearingless configurations, giving system designers flexibility to match the motor to a range of mounting and integration requirements. Its highly efficient Geroler mechanism makes it well suited to mobile equipment applications where consistent low-speed, high-torque performance is required.

SKU: 105-1696-006

Supplier Part Number (MPN): 105-1696-006

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Color
Black
Design Code
6
Dimensions
6.8 in L x 5.28 in W x 5.28 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
395
Housing Material
Iron
Motor Function
1-Speed
Mounting Type
4-Bolt Wheel Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Segment Code
B
Series
2000 Series
Shaft Type
Tapered Square Keyed
Valve Type
Disc

Product Questions & Answers (2)

Question by: Ronnie H on Mar 20, 2026, 10:49 AM
Will this Char-Lynn motor bolt right up in place of my old one on my turf care machine?
Answer by: Customer Support on Mar 22, 2026, 6:27 AM
Designed for aerial work platforms and turf care equipment, this motor should be a suitable replacement if the specifications align with your current unit. It's part of the Char-Lynn 2000 series, known for its disc Geroler design.
Question by: Dwight B on Oct 3, 2025, 7:57 PM
Motor's rated at 775 Nm torque, is that enough grunt for a aerial work platform running a drive circuit full time?
Answer by: Customer Support on Oct 5, 2025, 9:03 AM
For aerial work platform drive applications, 775 Nm is a solid torque rating and lines up well with what those machines typically demand. The Geroler design in this series is built for low-speed, high-torque output, so it holds up under the kind of steady hydraulic load a lift platform puts on it. The cast iron housing handles the abuse of mobile equipment use better than lighter alternatives too.
