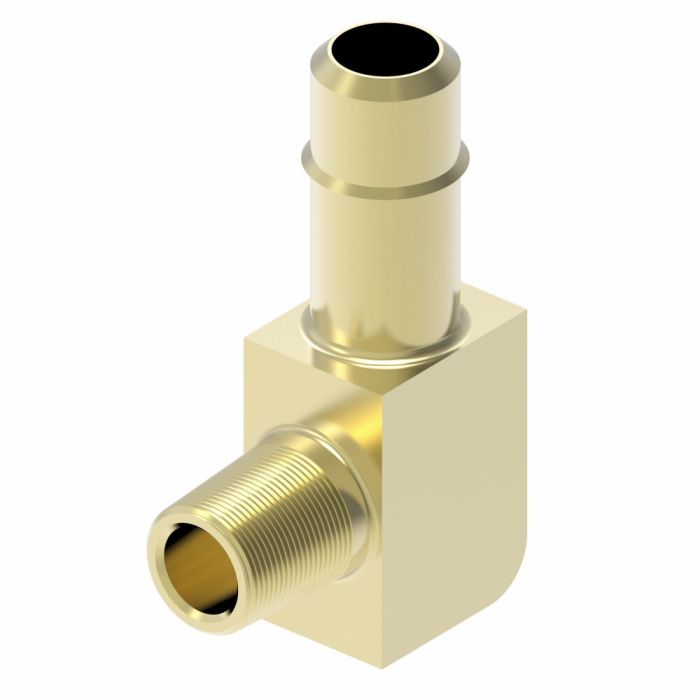

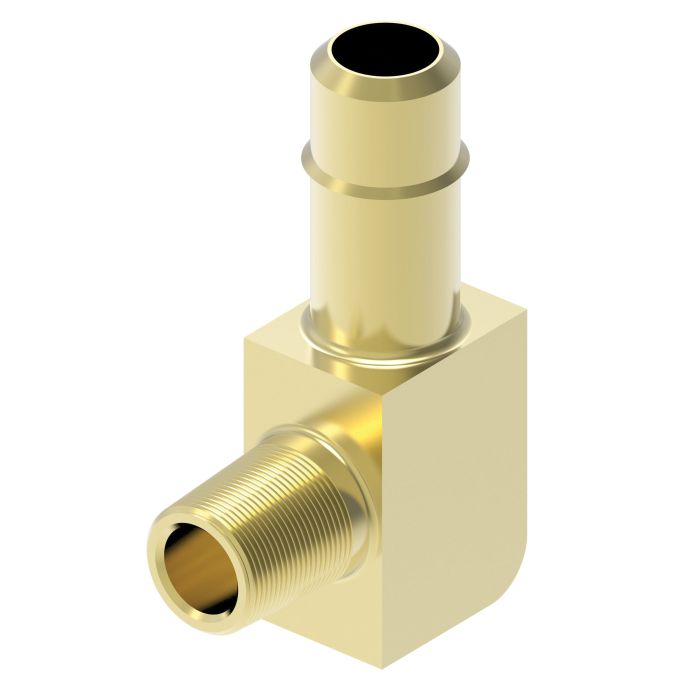

Danfoss / Eaton Brass Adapter

Ask A Question

Description & Features

Configured as a 1/8 in. NPTF male to 1/4 in. barb male 90° elbow, this brass adapter is well suited for temperature control circuits, test apparatus, coolant and lubricant lines, pneumatic circuits, and vacuum and fluid systems. The 90° elbow geometry allows direction changes in tight installations where straight fittings are not practical.

The Danfoss / Eaton Brass Adapter is manufactured under the Aeroquip brand and features Dura-Kote plating for corrosion resistance. It is rated for a minimum working temperature of -65°F and is designed to handle operating pressures above SAE standards. With hundreds of available styles in the same fitting family, substitutions and system expansions are straightforward.

SKU: 1069X4

Supplier Part Number (MPN): 1069X4

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1/4 in
Connection Size 2
1/8 in
Connection Type
Barbed, MNPT
Connection Type 1
Male NPTF
Connection Type 2
Male Hose Barb
Drop Dimensions
0.63 in
Fitting Type
90 deg Elbow
Hex Size
0.43 in
Material
Brass
Material Construction
Brass
nmfc
60
Operating Temperature
-65 to 250 deg F
Segment Code
A
Series
1069X Series
Thread Sealant
Without Thread Sealant

Product Questions & Answers (1)

Question by: Larry W on Aug 12, 2025, 7:13 AM
Will this fitting hold up alright in a hydraulic temperature control setup?
Answer by: Customer Support on Aug 13, 2025, 11:02 AM
Absolutely, this brass adapter is well-suited for temperature control circuits. It can also handle test apparatus, coolant and lubricant lines, and even pneumatic circuits.
