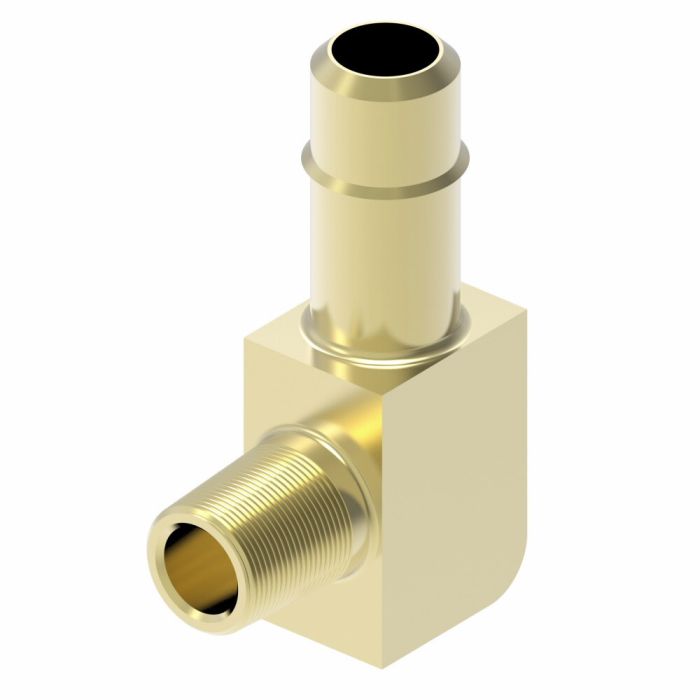

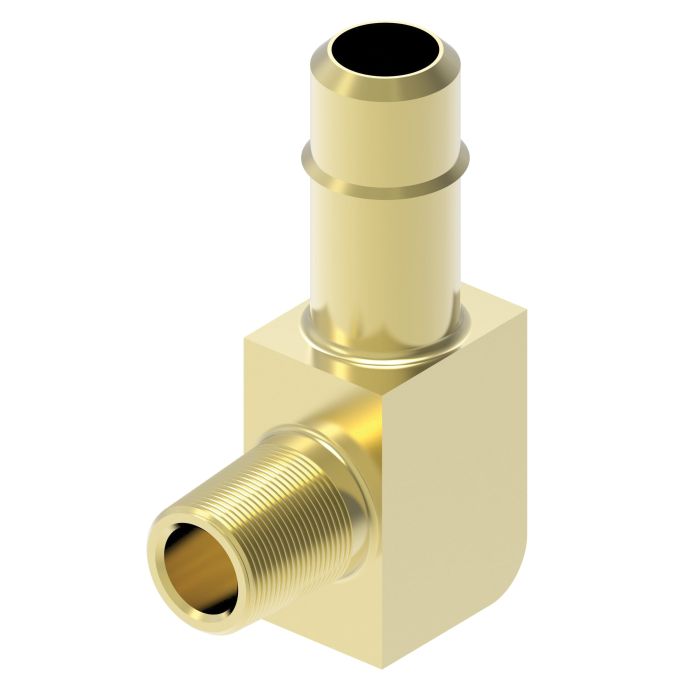

Designed for use in temperature control circuits, coolant lines, lubricant systems, and pneumatic or vacuum applications, this brass 90° elbow adapter connects a 1/4 in. NPTF male thread to a 3/8 in. barbed male fitting in a compact right-angle configuration. The Danfoss / Eaton Brass Adapter is an Aeroquip-branded fitting built to handle higher operating pressures exceeding SAE standards, making it a reliable choice for demanding fluid system assemblies.
Constructed from brass with Dura-Kote plating for corrosion resistance, this fitting is rated for service down to -65°F. The 90° elbow geometry suits installations where inline routing is not practical. Available as part of a broad range of compatible styles, it offers design flexibility across a wide variety of circuit configurations.
SKU: 1069X6
Supplier Part Number (MPN): 1069X6
|
Alternate Part Numbers
MINO-00015X02206
|
Application
Temperature control circuits, test apparatus, lubricant, coolant lines, pneumatic circuits, vacuum and fluid systems
|
Drop Dimension
0.62
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13556
|
End Size 1
0.25
|
End Size 2
0.38
|
End Type 1
NPTF
|
End Type 2
Barb
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
ICC
Elbow Adapters
|
Item Type
NPTF Male/Barb Male 90° Elbow Adapter
|
Language
English
|
Minimum Working Temperature
-65
|
Net Pack Quantity Units
EA
|
NMFC
60
|
Product Material
Brass
|
Product Width
0.58
|
Sub Brand
None
|
Supplier Part Number
1069X6
|
Product Weight
0.05 lbs
|
