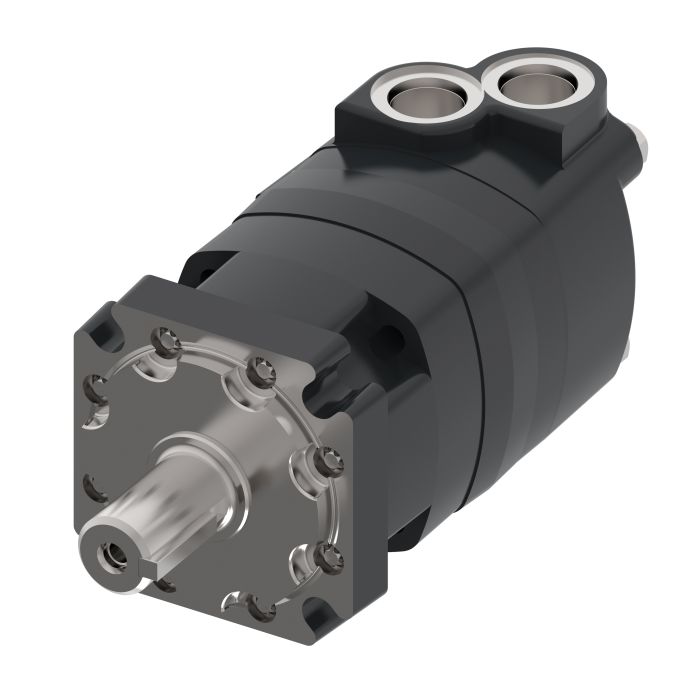

CHAR-LYNN 4000 SERIES MTR

Description & Features

Designed for demanding mobile and industrial applications, the Char-Lynn 4000 Series Mtr is a cast iron Geroler-type low-speed hydraulic motor built to handle flows up to 95 litres per minute with a torque rating of 705 Newton metres. Its highly efficient Geroler disc design contributes to measurable energy savings compared to conventional motor configurations.

Available in standard, wheel, and bearingless configurations, this motor offers flexibility across a range of equipment types, including mowing, snow removal, sprayer, trencher, and wood products machinery. The Eaton Char-Lynn 4000 Series is recognized for delivering the lowest pressure drop in its class, supporting consistent performance under variable load conditions.

SKU: 109-1111

Supplier Part Number (MPN): 109-1111-006

Specifications

Brand Danfoss	Bearing Type Tapered Roller	Check Valve Function With Check Valve Function	Design Code 6	Dimensions 11.61 in L x 4.72 in W x 4.72 in H	Drain Port Dimension 7/16-20 UNF-2B SAE O-ring	Frame Size 245	Housing Material Iron	Mounting Type 4-Bolt Square Flanged	Orbital Gearwheel Set Standard	Orbital Gearwheel Set Type Geroler	Painted Without Painted	Port Location Side, Staggered	Port Type UN-2B, SAE O-ring	Seal Material NBR	Segment Code A	Series 4000 Series	Shaft Size 1-5/8 in Dia	Shaft Type Tapered Square Keyed	Valve Type Disc

Product Questions & Answers (3)

Question by: Rod H on Sep 20, 2025, 12:41 PM

Will this motor hold up okay on a wood splitter?

Answer by: Customer Support on Sep 22, 2025, 6:49 AM

Applications like wood splitters are a good fit, yeah. The Char-Lynn 4000 series is often used in wood product machinery, along with things like trenchers and mowing equipment.

Question by: Hugh H on Feb 3, 2026, 8:15 AM

what kind of jobs is this motor actually built for? running a trencher or maybe a mower setup?

Answer by: Customer Support on Feb 5, 2026, 8:02 AM

Cast iron construction and a 705 newton metre torque rating put it in solid territory for demanding work like trenching, mowing, snow removal, spraying, and wood products equipment. The Geroler design keeps efficiency high, which matters a lot when that motor is running hard for extended stretches. It handles up to 95 litres per minute, so it fits well in systems that need real pulling power without wasting energy getting there.

Question by: Tammy J on Nov 17, 2025, 8:35 AM

got a mower setup that likes a slow-speed geroler motor, is this 4000 series one meant for that kind of work?

Answer by: Customer Support on Nov 18, 2025, 3:28 PM

For equipment like mowing, snow removal, sprayers, trenchers, and wood products, the Char-Lynn 4000 Series disc Geroler standard motor is a common style match since it is a low-speed Gerotor and is listed for those application types.
