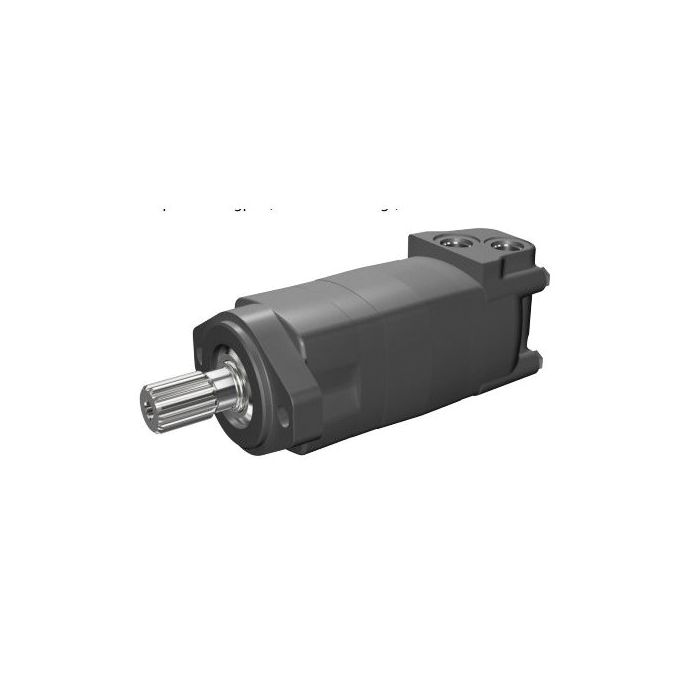

main product photo

CHAR-LYNN 4K MOTOR/BLK PAINT M041

Ask A Question

Description & Features

Designed for demanding hydraulic drive applications, the Char-Lynn 4K Motor with black paint finish (M041) is a hydraulic orbital motor built to deliver reliable torque output in industrial mobile and stationary equipment. The Char-Lynn designation reflects Eaton's well-established line of high-cycle hydraulic motors, widely used in agricultural machinery, construction equipment, and industrial drive systems.

The black paint finish provides corrosion resistance suitable for exterior or exposed mounting environments. As part of the 4K series, this motor is intended for moderate- to high-displacement hydraulic circuits where consistent rotational performance is required.

SKU: 109-1470-006

Supplier Part Number (MPN): 109-1470-006

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Color
Black
Design Code
6
Dimensions
11.94 in L x 5.84 in W x 5.84 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
205
Housing Material
Iron
Mounting Type
4-Bolt Square Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Series
4000 Series
Shaft Size
1-1/2 in Dia
Shaft Type
Splined
Valve Type
Disc

Product Questions & Answers (1)

Question by: Tony F on Jan 20, 2026, 1:23 PM
What kind of applications does this motor typically see?
Answer by: Customer Support on Jan 21, 2026, 5:47 PM
You'll find these Char-Lynn 4K motors doing work in agricultural equipment, construction machinery, and various industrial drive systems. They're built for hydraulic circuits where you need consistent rotational performance.
