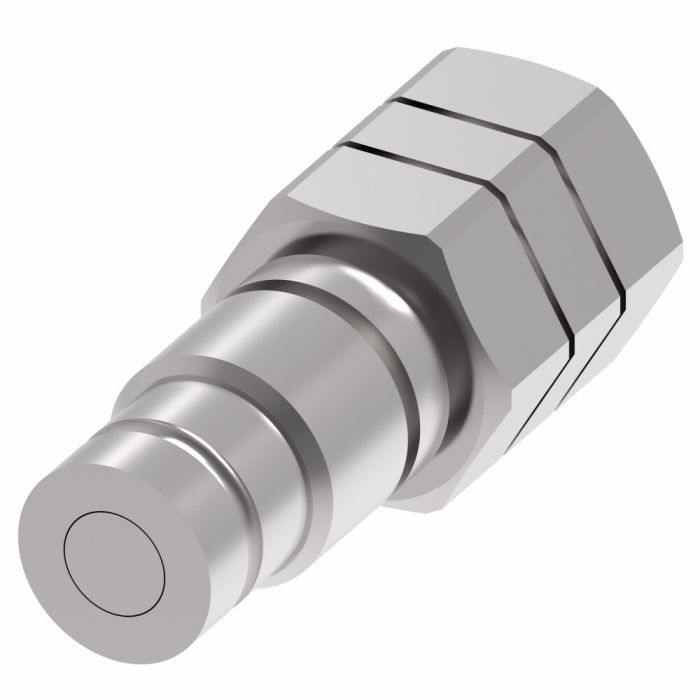

Designed for hydraulic and fluid transfer applications, this carbon steel Plug from Eaton Aeroquip's Hansen FF Series is a 3/8" male half fitting with a flat face internal connection and BSPP threaded end. Built to exceed ISO 16028 operating pressure requirements, it connects and disconnects without special tools, using a sleeve lock mechanism for secure engagement. The NBR+AU seal material supports reliable performance across a working temperature range starting at -13°F.
Suited for construction equipment, agricultural machinery, utility vehicles, on-highway vehicles, and stationary in-plant fluid transfer systems, this Plug is also interchangeable with HTMA couplings in the 3/8" size. It delivers a rated flow of 10.6 gallons per minute and a torque rating of 31.5 lb/ft. Compliant with the European Pressure Equipment Directive (PED) 97/23 EC Article 3.3, RoHS, and REACH standards, it is well suited for applications where both performance and regulatory compliance are required.
SKU: 10FFP37BS
Supplier Part Number (MPN): 10FFP37BS
|
Application
Hydraulic and Fluid Transfer, Construction equipment, Agricultural equipment, Utility vehicles, On-Highway vehicles, Stationary in-plant hydraulics and fluid transfer, Interchangeable with HTMA couplings in the 3/8” size
|
Certifications
ISO 16028
|
Compliances
European Pressure Equipment Directive (PED) 97 /23 EC Article 3.3|RoHS Compliant|REACH
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
0.38
|
End Type 1
Push to Connect
|
End Type 2
BSPP
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
10.6 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Flat Face
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-13
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
1.16
|
Safety locking Mechanism
Sleeve lock
|
Seal Material
NBR+AU
|
Sub Brand
Hansen
|
Supplier Part Number
10FFP37BS
|
Torque Rating
31.5 lb/ft
|
Torque Rating
31.5 lb/ft
|
Valve Type
2 way
|
Product Weight
0.35 lbs
|
