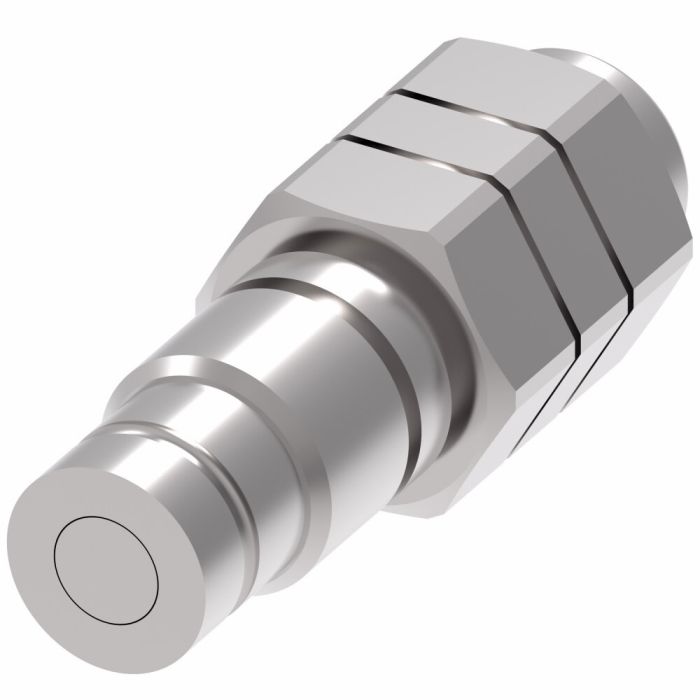

This Danfoss / Eaton Hansen FF Series quick disconnect coupling plug is designed for hydraulic and fluid transfer applications, including construction, agricultural, and utility equipment, as well as on-highway vehicles and stationary in-plant systems. It is interchangeable with HTMA couplings in the 3/8” size.
Constructed from carbon steel with NBR+AU seals, this male half coupling features a flat face internal connection, a sleeve lock safety locking mechanism, and a push-to-connect end type. It exceeds ISO 16028 operating pressures and offers a flow rate of 10.6 gallons per minute with a torque rating of 31.5 lb/ft. The end size 2 is 0.5625 SAE.
SKU: 10FFP56ORM
Supplier Part Number (MPN): 10FFP56ORM
|
Alternate Part Numbers
MINO-00015X02235
|
Application
Hydraulic and Fluid Transfer, Construction equipment, Agricultural equipment, Utility vehicles, On-Highway vehicles, Stationary in-plant hydraulics and fluid transfer, Interchangeable with HTMA couplings in the 3/8” size
|
Certifications
ISO 16028
|
Compliances
REACH|RoHS Compliant|European Pressure Equipment Directive (PED) 97 /23 EC Article 3.3
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13556
|
End Size 2
0.56
|
End Type 1
Push to Connect
|
End Type 2
SAE
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
10.6 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Flat Face
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-13
|
Net Pack Quantity Units
EA
|
Product Material
Carbon Steel
|
Product Width
0.94
|
Safety locking Mechanism
Sleeve lock
|
Seal Material
NBR+AU
|
Sub Brand
Hansen
|
Supplier Part Number
10FFP56ORM
|
Torque Rating
31.5 lb/ft
|
Torque Rating
31.5 lb/ft
|
Valve Type
2 way
|
Product Weight
0.33 lbs
|
