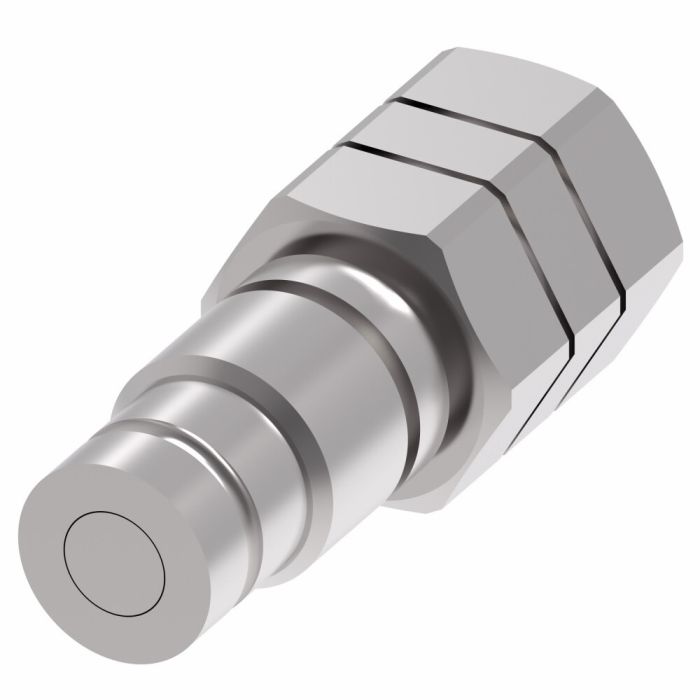

Engineered for high-performance applications, the Eaton Aeroquip Hansen FF Series Quick Disconnect Couplings are ideal for hydraulic and fluid transfer in demanding environments. These couplings are specifically designed for use in construction and agricultural equipment, utility and on-highway vehicles, as well as stationary in-plant hydraulics. With a flat face internal connection type, they ensure a secure and leak-free seal.
Constructed from durable carbon steel, these couplings feature a push-to-connect end type for quick and easy connections without the need for special tools. They exceed ISO 16028 operating pressures and are fully compliant with the European Pressure Equipment Directive (PED) 97/23 EC, RoHS, and REACH standards. The sleeve lock safety mechanism provides additional security during operation. With a flow rate of 10.6 gallons per minute and a torque rating of 31.5 lb/ft, these couplings are reliable and efficient in various industrial settings.
SKU: 10FFP87UN
Supplier Part Number (MPN): 10FFP87UN
|
Alternate Part Numbers
MINO-00015X02239
|
Application
Hydraulic and Fluid Transfer, Construction equipment, Agricultural equipment, Utility vehicles, On-Highway vehicles, Stationary in-plant hydraulics and fluid transfer, Interchangeable with HTMA couplings in the 3/8” size
|
Certifications
ISO 16028
|
Compliances
European Pressure Equipment Directive (PED) 97 /23 EC Article 3.3|RoHS Compliant|REACH
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
0.88
|
End Type 1
Push to Connect
|
End Type 2
SAE
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
10.6 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Flat Face
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-13
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
1.30
|
Safety locking Mechanism
Sleeve lock
|
Seal Material
NBR+AU
|
Sub Brand
Hansen
|
Supplier Part Number
10FFP87UN
|
Torque Rating
31.5 lb/ft
|
Torque Rating
31.5 lb/ft
|
Valve Type
2 way
|
Product Weight
0.41 lbs
|
