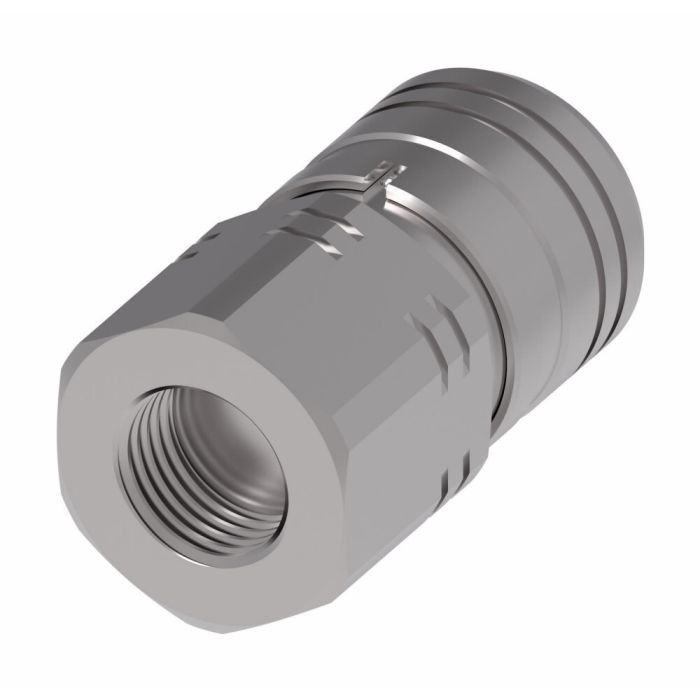

main product photo

Socket

Ask A Question

Description & Features

Designed for hydraulic and fluid transfer applications, this carbon steel flat-face Socket from Eaton's Hansen FF Series is a female half quick disconnect coupling with a 3/8" BSPP port connection and push-to-connect interface. It is rated for a flow rate of 10.6 gallons per minute and carries a torque rating of 31.5 lb/ft, with a minimum working temperature of -13°F. The sleeve lock mechanism secures the connection without requiring special tools, and the flat-face internal connection type minimizes fluid loss and air inclusion during connect and disconnect cycles.

Sealed with an NBR+AU compound, this two-way valve coupling meets and exceeds ISO 16028 operating pressure requirements and complies with RoHS and REACH standards, as well as the European Pressure Equipment Directive 97/23/EC. Suitable for construction equipment, agricultural machinery, utility vehicles, on-highway vehicles, and stationary in-plant fluid transfer systems, it is also interchangeable with HTMA couplings in the 3/8" size.

SKU: 10FFS37BS

Supplier Part Number (MPN): 10FFS37BS

Specifications

Application
Hydraulic and Fluid Transfer, Construction equipment, Agricultural equipment, Utility vehicles, On-Highway vehicles, Stationary in-plant hydraulics and fluid transfer, Interchangeable with HTMA couplings in the 3/8” size
Certifications
ISO 16028
Compliances
REACH|European Pressure Equipment Directive (PED) 97 /23 EC Article 3.3|RoHS Compliant
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 2
0.38
End Type 1
Push to Connect
End Type 2
BSPP
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
Flow Rate1
10.6 gallons per minute
ICC
Quick Disconnect Couplings
Internal Connection Type
Flat Face
Item Type
Female Half
Language
English
Minimum Working Temperature
-13
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
1.26
Safety locking Mechanism
Sleeve lock
Seal Material
NBR+AU
Sub Brand
Hansen
Supplier Part Number
10FFS37BS
Torque Rating
31.5 lb/ft
Torque Rating
31.5 lb/ft
Valve Type
2 way
Product Weight
0.56 lbs

Related Documents

Product Questions & Answers (2)

Question by: Diane H on Nov 13, 2025, 2:14 PM
does this socket work with BSPP fittings or is it strictly NPT on the port end?
Answer by: Customer Support on Nov 15, 2025, 10:44 AM
BSPP is exactly what you get on the port side of this coupling. The thread connection is 3/8" BSPP, so if your system or manifold is already set up for British Standard Parallel Pipe threads, this will mate up without any adapter gymnastics.
Question by: Donna W on Dec 29, 2025, 8:22 AM
trying to replace a 3/8 flat-face coupler on a skid steer, is this the female half and does it interchange with HTMA?
Answer by: Customer Support on Dec 31, 2025, 7:32 AM
For a 3/8 inch flat face quick disconnect setup, this part is the socket, meaning the female half, and it is called out as interchangeable with HTMA couplings in the 3/8 inch size.
