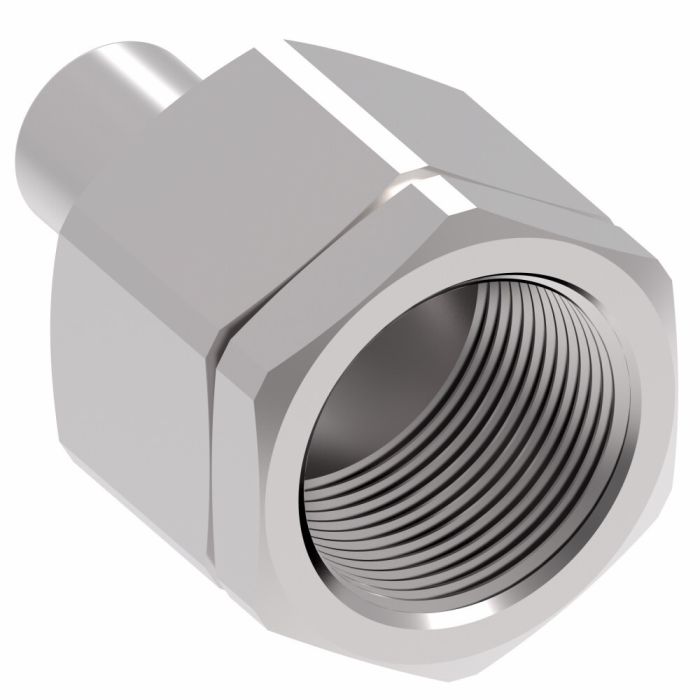

Designed for high-flow hydraulic circuits, this carbon steel male half coupling supports flow rates up to 76 gallons per minute and is rated to exceed ISO 16028 operating pressures. The push-to-connect end mates directly without special tools, while the opposite end uses an NPTF female thread for secure line connection. A ball lock internal mechanism and Buna-N seals maintain a reliable fluid-tight connection across a working temperature range starting at -40°F.
The Danfoss / Eaton Hansen HK Series Quick Disconnect Coupling carries ISO 7241-1 Series B certification and is suited for a wide range of industries, including agriculture, construction, oil and gas, aerospace, and fluid transfer applications. The two-way valve configuration allows flow in both directions, and the absence of a safety locking mechanism supports rapid connect and disconnect cycles in field or production environments.
SKU: 10K41
Supplier Part Number (MPN): 10K41
|
Alternate Part Numbers
MINO-00015X02255
|
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
|
Certifications
ISO 7241-1 Series B
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
76 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Product Material
Carbon Steel
|
Product Width
2.74
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
10K41
|
Valve Type
2 way
|
Product Weight
2.36 lbs
|
