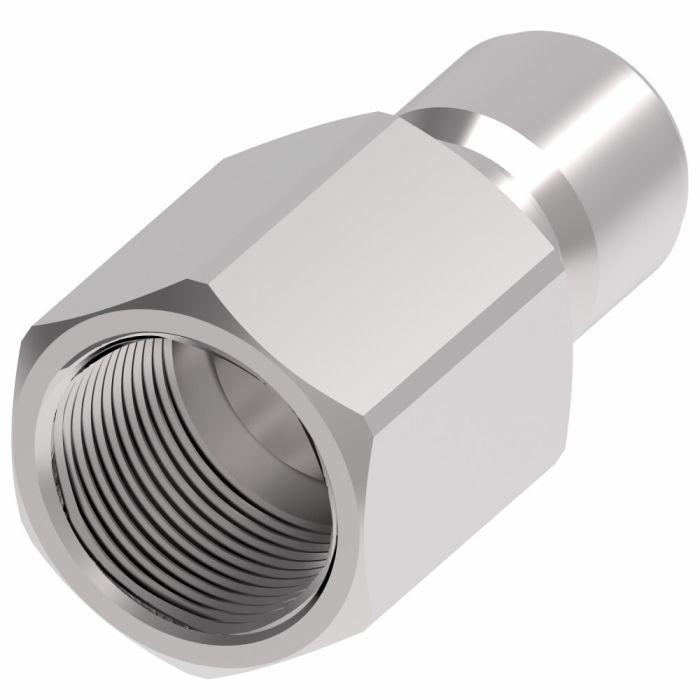

Designed for high-flow fluid transfer across demanding industrial environments, the Danfoss / Eaton Hansen coupling is a 1-1/4" male half quick disconnect plug built for reliability and fast connection cycles. Carbon steel construction and a Buna-N seal support a broad operating range, with a minimum working temperature of -40°F and a straight-through valve design that allows unrestricted flow up to 184 gallons per minute.
The push-to-connect male end pairs with an NPTF female port, and an internal ball lock mechanism ensures a secure, leak-resistant connection without the need for special tools. Rated to exceed ISO 16028 operating pressures, this coupling is well suited for fluid transfer applications in chemical processing, food and beverage, injection molding, marine, medical, pressure washing, and steam cleaning environments. The Hansen ST Series design is part of the Aeroquip product family and is available under supplier part number 10T41.
SKU: 10T41
Supplier Part Number (MPN): 10T41
|
Alternate Part Numbers
MINO-00015X02265
|
Application
Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
184 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
1 1/4
|
Product Material
Carbon Steel
|
Product Width
2.31
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
10T41
|
Valve Type
Straight Thru
|
Product Weight
0.77 lbs
|
