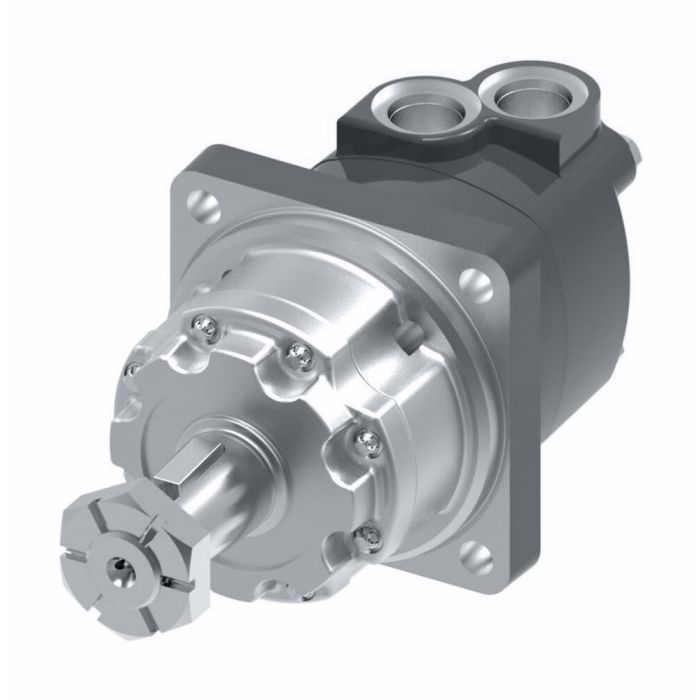

main product photo

CHAR LYNN M04150AC01AD02000000000000000F

Ask A Question

Description & Features

Designed for demanding mobile hydraulic applications, the Char-Lynn M04150AC01AD02000000000000000F is a 4000 Series Disc Geroler wheel motor built for equipment such as mowers, trenchers, sprayers, snow removal units, and wood processing machinery. Its Geroler motor design delivers notably low pressure drop, contributing to overall system efficiency without sacrificing output.

Constructed from cast iron, this motor is rated for up to 705 Nm of torque and supports flow rates up to 95 litres per minute. Available in standard, wheel, and bearingless configurations, it offers installation flexibility across a range of machine types. The 5.86-inch width suits compact drive assemblies where space and weight are factors.

SKU: 110-1041

Supplier Part Number (MPN): 110-1041-006

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Design Code
6
Dimensions
8.56 in L x 5.86 in W x 5.86 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
245
Housing Material
Iron
Mounting Type
4-Bolt Wheel Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
Without Painted
Port Location
Side
Port Type
UNC-2B, Manifold
Seal Material
NBR
Series
4000 Series
Shaft Type
Straight Keyed
Valve Type
Disc

Similar Products

Model Number Port Type Port Location Port Size Price Action
CHAR-LYNN MOTOR 15.0 CID

110-1078

UN-2B, SAE O-ring

Side, Staggered

Product Questions & Answers (1)

Question by: Bonnie J on Apr 23, 2025, 9:19 AM
Is this Char-Lynn motor gonna hold up on my wood splitter? I need somethin' that can take a beatin'.
Answer by: Customer Support on Apr 25, 2025, 6:17 AM
This Char-Lynn motor is constructed from cast iron, making it durable for demanding applications like wood processing machinery. It's rated for up to 705 Nm of torque, so it should provide ample power for splitting wood.
