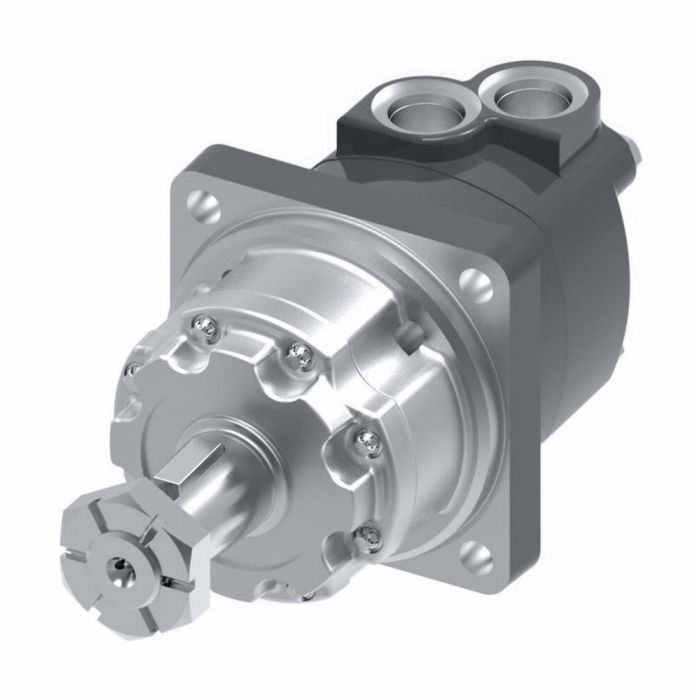

CHAR-LYNN MOTOR

Description & Features

Designed for demanding industrial applications such as mowing, snow removal, and trenching, the Char-Lynn Motor offers unmatched performance and durability. This motor features a highly efficient Geroler design that delivers energy savings and a lower pressure drop than other motors in the industry. With a maximum flow rate of 95 liters per minute, it ensures consistent power output, making it a reliable choice for various heavy-duty tasks.

Constructed from robust cast iron, the Char-Lynn Motor is available in both wheel and bearingless configurations, providing versatility to meet diverse operational needs. It boasts an impressive torque rating of 850 newton meters, ensuring powerful performance in all applications. Trust in the quality and engineering of the Char-Lynn brand for your industrial equipment requirements.

SKU: 110-1073

Supplier Part Number (MPN): 110-1073-006

Specifications

Brand Danfoss	Bearing Type Tapered Roller	Check Valve Function With Check Valve Function	Color Black	Design Code 6	Dimensions 9.15 in L x 5.86 in W x 5.86 in H	Drain Port Dimension 7/16-20 UNF-2B SAE O-ring	Frame Size 310	Housing Material Iron	Mounting Type 4-Bolt Wheel Flanged	Orbital Gearwheel Set Standard	Orbital Gearwheel Set Type Geroler	Painted With Painted	Port Location Side, Staggered	Port Type UN-2B, SAE O-ring	Seal Material NBR	Segment Code B	Series 4000 Series	Shaft Size 1-5/8 in Dia	Shaft Type Tapered Straight Square Keyed	Valve Type Disc

Similar Products

Model Number	Shaft Type	Dimensions	Segment Code
110-1086	Tapered Square Keyed	10.86 in L x 5.86 in W x 5.86 in H	A
110-1129	Tapered Straight Square Keyed	9.15 in L x 5.86 in W x 5.86 in H	B
110-1145	Tapered Straight Square Keyed	10.86 in L x 5.86 in W x 5.86 in H	B
110-1158-006	Tapered Square Keyed	9.15 in L x 5.86 in W x 5.86 in H
110-1192	Tapered Straight Square Keyed	9.15 in L x 5.86 in W x 5.86 in H	B
