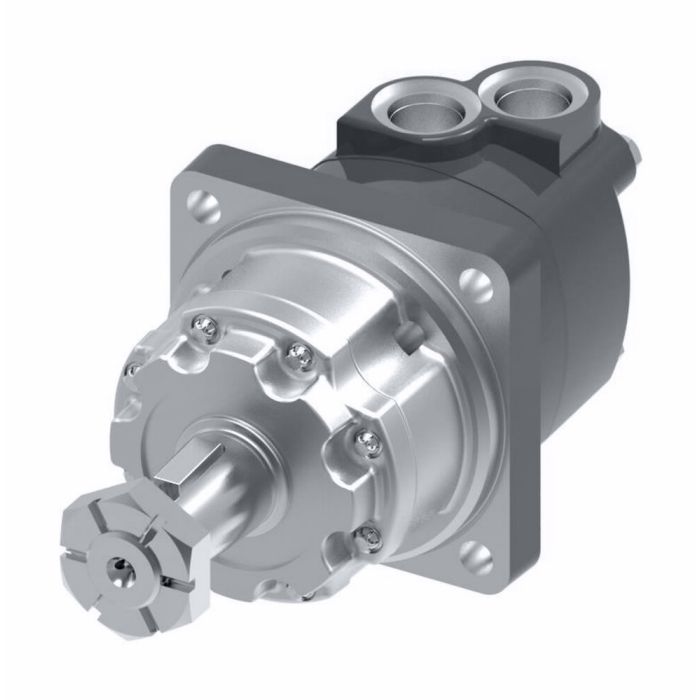

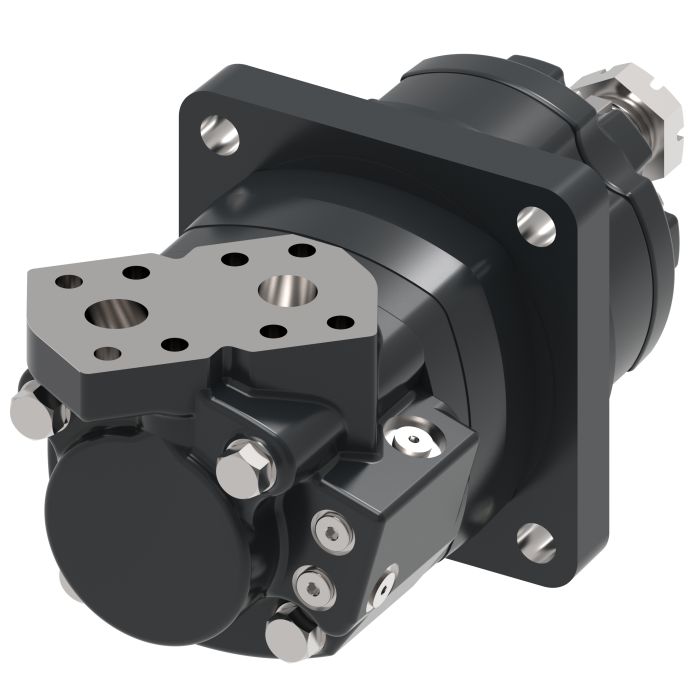

CHAR-LYNN MOTOR

Ask A Question

Description & Features

Engineered for demanding mobile and industrial applications, the Char-Lynn Motor belongs to the Danfoss/Eaton 4000 Series Disc Geroler platform, a line recognized for delivering a notably low pressure drop relative to comparable hydraulic motors. The cast iron construction supports durability in applications such as mowing, snow removal, spraying, trenching, and wood products processing.

Available in standard, wheel, and bearingless configurations, this motor accommodates a range of installation requirements. The highly efficient Geroler design contributes to meaningful energy savings in continuous-duty cycles. With a rated flow of 75 litres per minute and a torque output of 320 Newton metres, it suits mid-range drive and rotation tasks where reliable torque delivery and compact packaging are priorities.

SKU: 110-1081

Supplier Part Number (MPN): 110-1081-006

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Design Code
6
Dimensions
8.15 in L x 5.86 in W x 5.86 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
110
Housing Material
Iron
Mounting Type
4-Bolt Wheel Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
Without Painted
Port Location
Side, Staggered
Port Type
UN-2B, SAE O-ring
Seal Material
NBR
Segment Code
B
Series
4000 Series
Shaft Size
1-5/8 in Dia
Shaft Type
Tapered Straight Square Keyed
Valve Type
Disc

Product Questions & Answers (1)

Question by: Howard W on Oct 9, 2025, 9:50 PM
What kind of work is this Char-Lynn motor best suited for?
Answer by: Customer Support on Oct 11, 2025, 7:20 AM
This Char-Lynn motor is particularly well-suited for applications like mowing, snow removal, spraying, trenching, and wood products processing.
