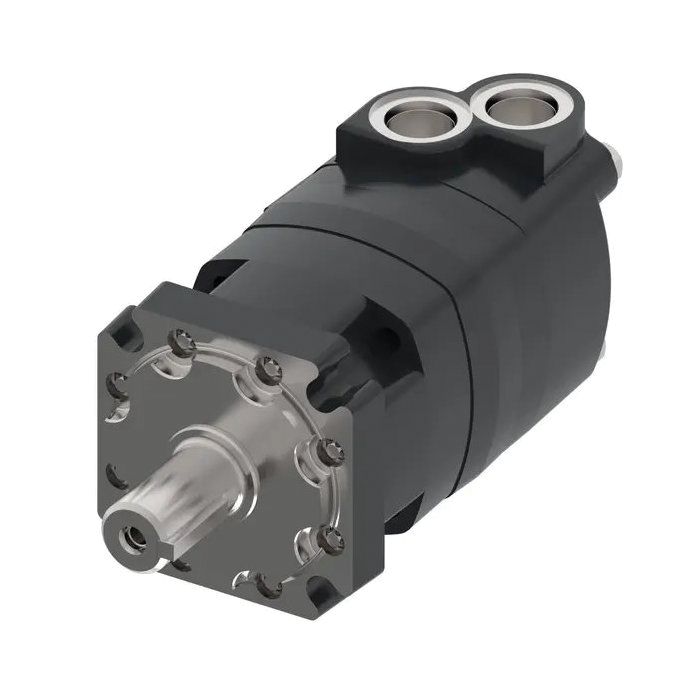

CHAR LYNN M04099AC03AB02000000000000000F

Ask A Question

Description & Features

The CHAR LYNN M04099AC03AB02000000000000000F, part of the 4000 Series, is a disc geroler wheel motor ideal for a variety of applications including mowing, snow removal, sprayer, trencher, and wood product machinery.

This Char-Lynn motor features a highly efficient geroler design which provides energy savings and the lowest pressure drop in the industry. Constructed of cast iron, this wheel motor is designed for standard wheel or bearingless configurations, with a torque rating of 485 newton meters and a flow rate of 95 liters per minute.

SKU: 110-1090

Supplier Part Number (MPN): 110-1090-006

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Design Code
6
Dimensions
8.56 in L x 5.86 in W x 5.86 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
160
Housing Material
Iron
Mounting Type
4-Bolt Wheel Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
Without Painted
Port Location
Side, Staggered
Port Type
UN-2B, SAE O-ring
Seal Material
NBR
Series
4000 Series
Shaft Type
Splined
Valve Type
Disc

Product Questions & Answers (1)

Question by: Cindy R on Nov 27, 2025, 7:11 PM
Can this motor handle continuous use on a wood splitter, or is it more for intermittent jobs?
Answer by: Customer Support on Nov 29, 2025, 1:35 PM
Designed for applications like mowing and snow removal, this motor should hold up fine on a wood splitter, assuming you stay within the specified flow rate of 95 liters per minute.
