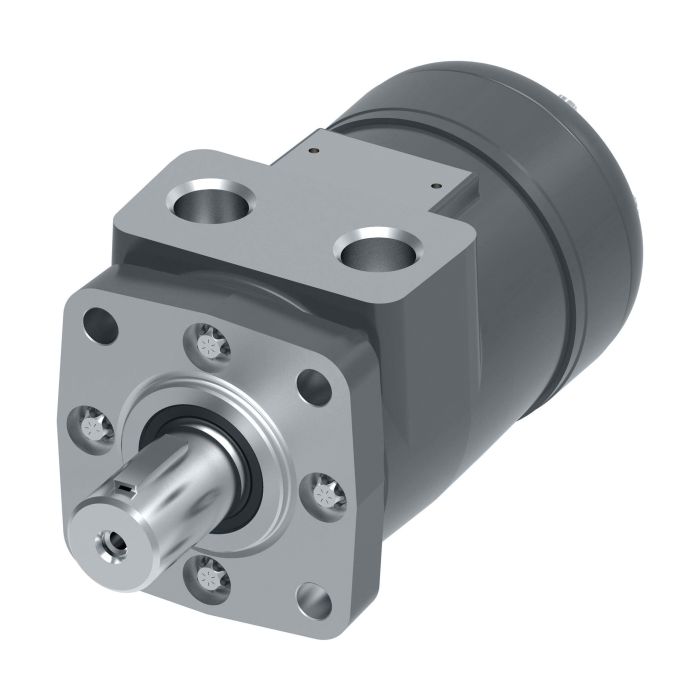

DANFOSS / EATON TRANS ASSY CW

Ask A Question

Description & Features

Manufactured under the Char-Lynn brand by Danfoss/Eaton, this clockwise-rotation transmission assembly is designed for use in hydraulic motor and drive applications where directional specificity is required. The CW designation indicates a fixed clockwise shaft rotation, making it suitable for systems where rotation direction is a critical design parameter.

The Danfoss / Eaton Trans Assy CW is a genuine replacement or service component sourced directly through authorized supply channels. It is classified as a web-stocked item and is compatible with Char-Lynn hydraulic motor configurations that require a clockwise-oriented transmission assembly.

SKU: 1100-009

Supplier Part Number (MPN): 101-1100-009

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
9
Dimensions
7.06 in L x 3.38 in W x 3.31 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
160
Housing Material
Iron
Mounting Type
4-Bolt Square Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Gerotor
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
NPTF
Seal Material
NBR
Series
H Series
Shaft Size
1 in Dia
Shaft Type
Straight Woodruff Keyed
Valve Type
Spool

Product Questions & Answers (1)

Question by: Merle M on Feb 28, 2026, 1:02 PM
Will this transmission assembly work as a direct replacement for the Char-Lynn part number 101-1100-009?
Answer by: Customer Support on Mar 2, 2026, 9:21 AM
Yes, this Danfoss/Eaton transmission assembly, SKU 1100-009, is a direct replacement and service component for Char-Lynn part number 101-1100-009.
