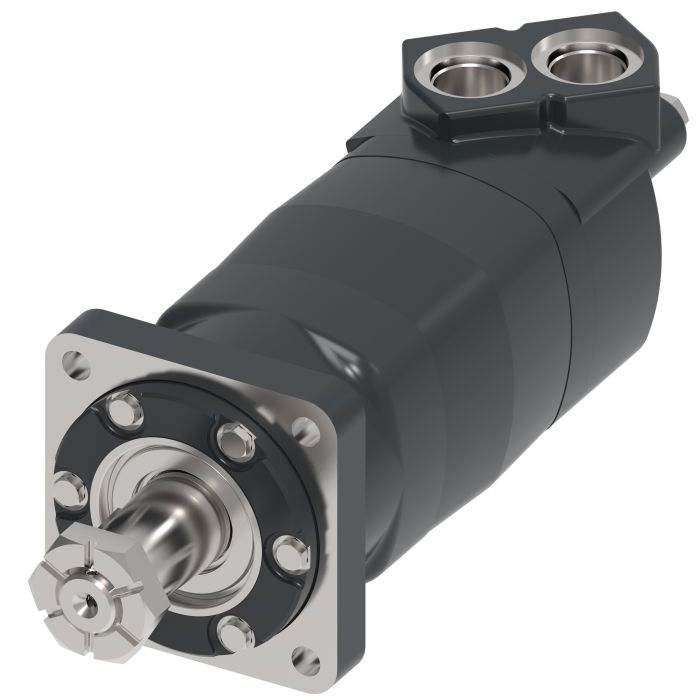

CHAR-LYNN MOTOR 19.0 /REV

Ask A Question

Description & Features

The Eaton Char-Lynn motor is a 19.0 /REV disc geroler motor suitable for mobile equipment, snow removal, mowing, sprayer, trencher and wood product applications.

This Char-Lynn motor features standard, wheel or bearingless configurations and a highly-efficient Geroler motor that provides energy savings and the lowest pressure drop in the industry.

Constructed of cast iron, the motor offers a torque rating of 930 newton metres and a flow rate of 150 litres per minute.

SKU: 112-1060

Supplier Part Number (MPN): 112-1060-006

Alternate Part Numbers: 0330048130, C1AH79

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Design Code
6
Dimensions
11.675 in L x 5.78 in W x 5.78 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
310
Housing Material
Iron
Mounting Type
4-Bolt Square Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
Without Painted
Port Location
Side, Staggered
Port Type
UN-2B, SAE O-ring
Seal Material
NBR
Segment Code
A
Series
6000 Series
Shaft Size
1-1/2 in Dia
Shaft Type
Splined
Valve Type
Disc

Product Questions & Answers (2)

Question by: Bobby C on Apr 24, 2025, 5:43 PM
Hey, can this run continuously, like for a wood splitter application?
Answer by: Customer Support on Apr 26, 2025, 7:40 AM
Designed for mobile equipment, snow removal, mowing, spraying, trenching, and wood product applications, this Char-Lynn motor can definitely handle continuous use in a wood splitter.
Question by: Dale B on Dec 30, 2025, 9:45 AM
930 newton meters of torque on this unit, does that hold up running something like a trencher or wood chipper for extended periods?
Answer by: Customer Support on Dec 31, 2025, 5:00 PM
That torque rating is substantial, and yes, it lines up well with exactly the kind of heavy-duty mobile equipment applications this motor is built around. Trenchers and wood product machinery are both listed use cases, so you're not pushing it outside its intended range. The Geroler design on the 2000 Series is known for efficiency under load, which helps when a machine is working hard for long stretches rather than just cycling on and off.
