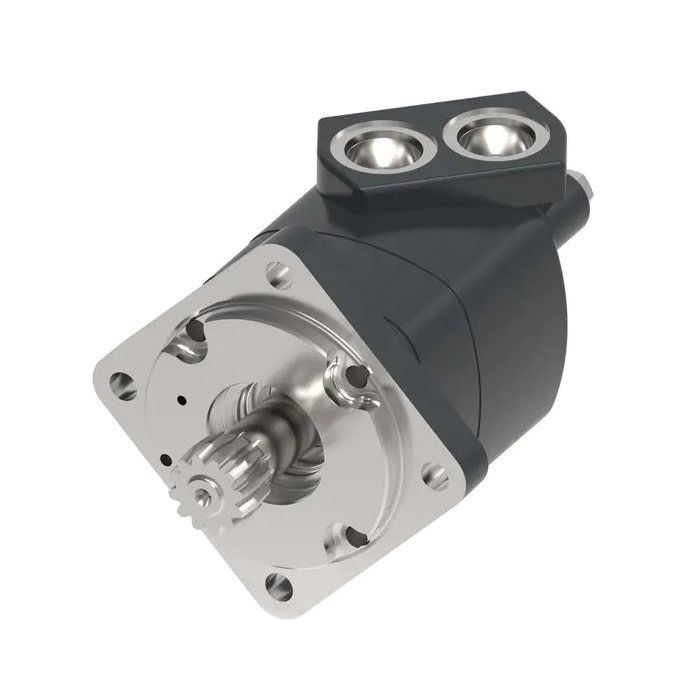

CHAR LYNN M06239AB04AB0200000000000AA00F

Ask A Question

Description & Features

Designed for demanding mobile equipment applications, the Char-Lynn M06239AB04AB0200000000000AA00F is a 2000 Series Disc Geroler hydraulic motor built for high-torque, low-speed work. With a torque rating of 1,155 Newton metres and a maximum flow rate of 150 litres per minute, it is well suited for use in snow removal, mowing, sprayer, trencher, and wood products equipment.

The cast iron construction provides durability in rugged field conditions. Available in standard, wheel, or bearingless configurations, the 2000 Series Disc Geroler design delivers a notably low pressure drop, contributing to greater system efficiency across variable duty cycles. The highly efficient Geroler mechanism supports energy savings without sacrificing output performance.

SKU: 112-1144

Supplier Part Number (MPN): 112-1144-006

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Color
Black
Design Code
6
Dimensions
12.98 in L x 5.8 in W x 5.78 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
390
Housing Material
Iron
Mounting Type
4-Bolt Square Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
With Painted
Port Location
Side, Staggered
Port Type
Manifold
Seal Material
NBR
Series
6000 Series
Shaft Size
40 mm Dia
Shaft Type
Straight Rectangular Keyed
Valve Type
Disc

Product Questions & Answers (1)

Question by: Larry M on Feb 2, 2026, 4:12 PM
If I'm usin' this Char-Lynn motor on some wood processing equipment, will that cast iron hold up to the sawdust and all?
Answer by: Customer Support on Feb 3, 2026, 7:14 PM
Built with cast iron, this Char-Lynn motor offers good durability for rugged conditions, which would include the kind of environment you'd find around wood processing equipment.
