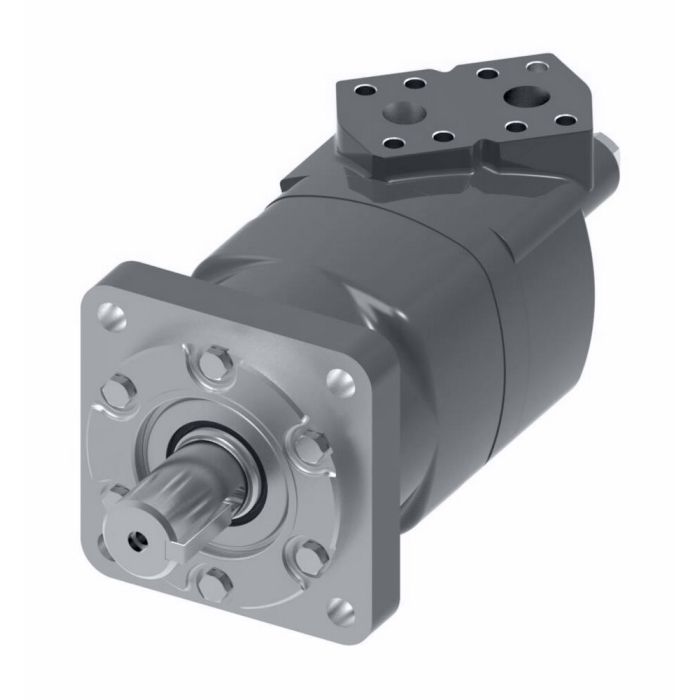

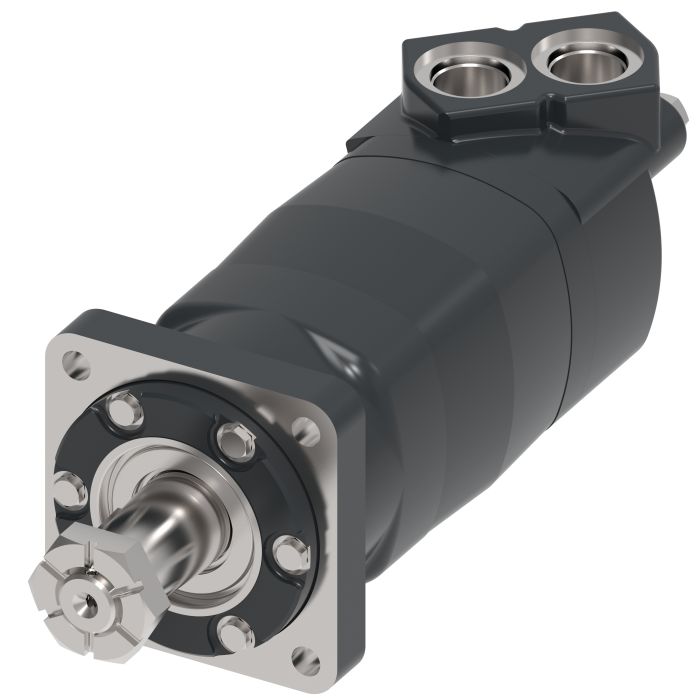

Danfoss / Eaton CHAR-LYN 6K Motor

Ask A Question

Description & Features

Built for demanding mobile equipment applications, the Danfoss / Eaton Char-Lynn 6K Motor is a cast iron, low-speed Geroler motor rated for up to 150 litres per minute flow and 1,155 Newton metres of torque. Its disc Geroler design delivers a notably low pressure drop, contributing to measurable energy efficiency across hydraulic circuits.

Available in standard, wheel, and bearingless configurations, this motor suits a range of mobile equipment uses including snow removal, mowing, sprayer systems, trenchers, and wood processing equipment. The flexible mounting options make it adaptable to varied installation requirements without compromising output performance.

SKU: 112-1246

Supplier Part Number (MPN): 112-1246-006

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
Without Check Valve Function
Design Code
6
Dimensions
12.98 in L x 5.8 in W x 5.78 in H
Drain Port Dimension
9/16-18 UNF-2B SAE O-ring
Frame Size
390
Housing Material
Iron
Mounting Type
4-Bolt Square Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
Without Painted
Port Location
Side, Staggered
Port Type
UN-2B, SAE O-ring
Seal Material
NBR
Series
6000 Series
Shaft Size
1-1/2 in Dia
Shaft Type
Splined
Valve Type
Disc

Product Questions & Answers (1)

Question by: Wade C on Mar 19, 2026, 9:51 AM
What kind of applications does this motor work best in? Thinking about using it on a sprayer I'm building.
Answer by: Customer Support on Mar 21, 2026, 6:49 AM
This Char-Lynn 6K motor really shines in mobile equipment applications. It's a good fit for things like snow removal, mowing, sprayer systems like you're building, trenchers, and even some wood processing equipment.
