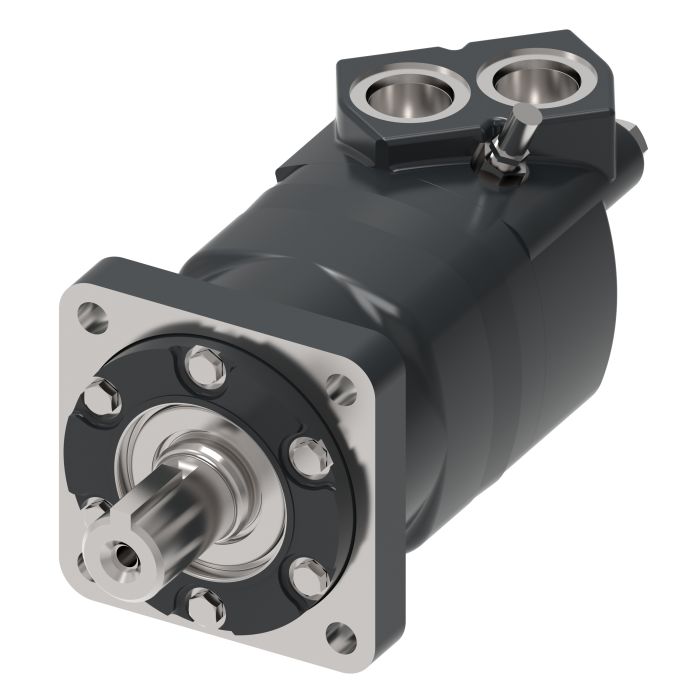

main product photo

CHAR LYNN M06120AB01AA0200000AB00000000F

Ask A Question

Description & Features

Designed for mobile equipment applications including snow removal, mowing, spraying, trenching, and wood processing, this cast iron Geroler motor delivers reliable low-speed, high-torque performance in demanding hydraulic systems. With a torque rating of 575 Nm and a flow rate capacity of 150 litres per minute, it suits a wide range of mobile drive applications where efficiency and durability are priorities.

The Char-Lynn M06120AB01AA0200000AB00000000F is part of Danfoss/Eaton's 2000 Series and features a disc Geroler design recognized for its low pressure drop characteristics, contributing to measurable energy efficiency across the system. Available in standard, wheel, or bearingless configurations, it offers installation flexibility to match varied equipment layouts. Cast iron construction supports durability in field conditions typical of outdoor and industrial mobile equipment.

SKU: 112-1253

Supplier Part Number (MPN): 112-1253-006

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Design Code
6
Dimensions
12.13 in L x 5.8 in W x 5.78 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
195
Housing Material
Iron
Mounting Type
4-Bolt Square Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
Without Painted
Port Location
Side, Staggered
Port Type
UN-2B, SAE O-ring
Seal Material
NBR
Segment Code
B
Series
6000 Series
Shaft Size
1-1/2 in Dia
Shaft Type
Straight Keyed
Valve Type
Disc

Product Questions & Answers (1)

Question by: Vince B on Jul 7, 2025, 6:40 AM
Hey, will this motor work alright for some mobile wood processing equipment, like a firewood processor?
Answer by: Customer Support on Jul 9, 2025, 6:24 AM
For mobile wood processing, this Char-Lynn motor should be a solid choice, since it's designed for equipment like that along with trenchers, sprayers, and mowers.
