main product photo

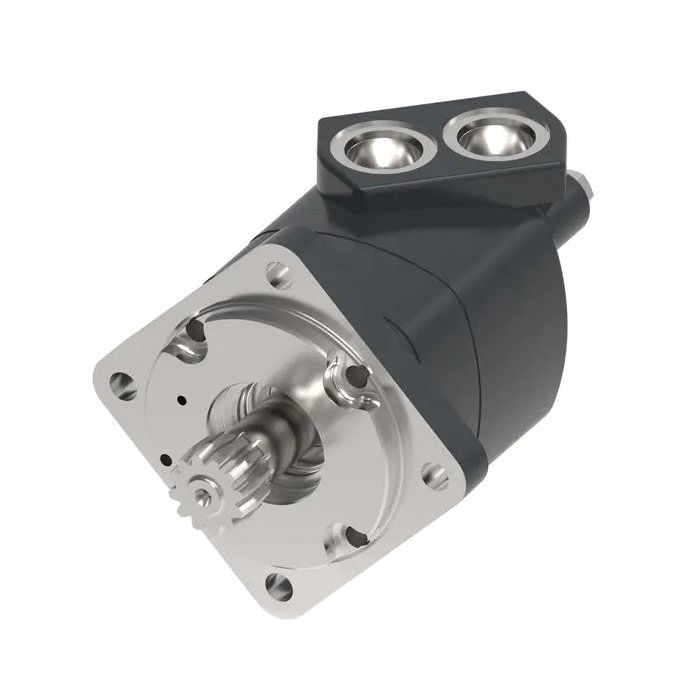

M06120AB03AB0200050000300AA00F/6K MOTOR

Ask A Question

Description & Features

The M06120AB03AB0200050000300AA00F/6K MOTOR is a Danfoss / Eaton Char-Lynn 2000 Series disc geroler motor, designed to provide reliable power in demanding applications.

This low-speed Gerotor/Geroler motor features a highly-efficient Geroler design for energy savings and offers the lowest pressure drop in the industry. Standard wheel or bearingless configurations are available. Constructed from durable cast iron, this motor is well-suited for mobile equipment, snow removal, mowing, sprayer, trencher, and wood product applications. With a flow rate of 150 liters per minute and a torque rating of 575 newton meters, this motor delivers consistent performance.

The product width is 5.8 inches.

SKU: 112-1504-006

Supplier Part Number (MPN): 112-1504-006

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Color
Black
Design Code
6
Dimensions
12.13 in L x 5.8 in W x 5.78 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
195
Housing Material
Iron
Mounting Type
4-Bolt Square Flanged
Orbital Gearwheel Set
Free Running
Orbital Gearwheel Set Type
Geroler
Painted
With Painted
Port Location
Side, Staggered
Port Type
Manifold
Seal Material
NBR
Series
6000 Series
Shaft Size
1-1/2 in Dia
Shaft Type
Splined
Valve Type
Disc

Product Questions & Answers (1)

Question by: Ross H on Jul 9, 2025, 3:04 PM
I'm looking for a motor to run a trencher attachment on my skid steer. Would this one be suitable?
Answer by: Customer Support on Jul 10, 2025, 5:00 PM
This Char-Lynn 2000 series motor is often used for trenchers, as well as mobile equipment, snow removal, mowing, sprayers, and wood product applications.
