Din Union Tee

Description & Features

Constructed from durable steel, the Din Union Tee is designed for robust performance in hydraulic systems. It features three M30 x 2.0 male DIN tube connections, making it suitable for high-pressure environments where secure, leak-resistant joins are essential. The tee shape facilitates efficient branching of fluid lines, optimizing flow distribution in complex hydraulic networks.

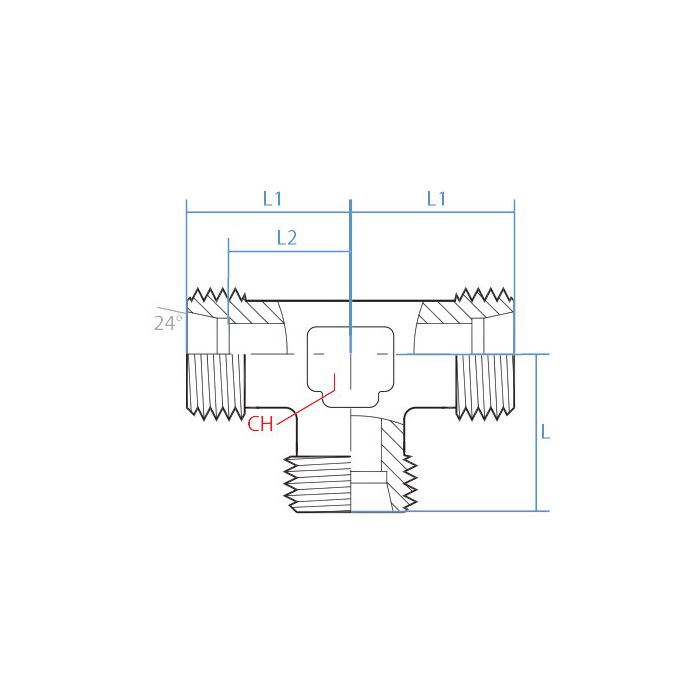

With dimensions including a 27mm wrench size, a 37mm L1 length, and a 26.5mm L2 length, this component integrates seamlessly into existing setups, ensuring compatibility with industry-standard fittings. Manufactured by Adaptall, this union tee offers reliable performance for industrial applications that demand precise and dependable connections.

SKU: 5080S-20

Supplier Part Number (MPN): 5080S-20

Specifications

Brand adapt-all	Connection Size 1 20 mm	Connection Size 2 20 mm	Connection Size 3 S20	Connection Type Male Metric	Connection Type 1 Male Metric DIN 24 deg Tube	Connection Type 2 Male Metric DIN 24 deg Tube	Connection Type 3 Male Metric DIN 24 deg Tube	Dimension Standards DIN 2353	Dimensions 74 mm L	Finish Zinc-Plated	Fitting Type Tee	Hex Size 27 mm	Material Steel	Material Construction Carbon Steel	Series 5080 Series	Thread Size M30x2

Similar Products

Model Number	Connection Size 1	Connection Size 2	Connection Size 3	Thread Size	Hex Size
5080S-06	6 mm	6 mm		M14x1.5	12 mm
5080S-08	8 mm	8 mm		M16x1.5	14 mm
5080S-10		10 mm	S10	M18x1.5	17 mm
5080S-12	L12	12 mm		M20x1.5	17 mm
5080S-14	14 mm	14 mm	S14	M22x1.5	19 mm
5080S-16	S16	S16	S16	M24x1.5	24 mm

Product Questions & Answers (3)

Question by: Ronnie W on Jun 11, 2025, 7:43 AM

All three ports on this tee are M30 x 2.0 male DIN tube connections, right? Just want to make sure before I order a handful of these for a branching setup we got going.

Answer by: Customer Support on Jun 12, 2025, 2:04 PM

Every port on the 5080S-20 runs M30 x 2.0 male DIN tube, all three of them. So whatever female DIN fittings you're mating to on each leg, they'll all need to match that same thread spec. Good fit for a branching line where you need consistent connections across the board.

Question by: Neil O on Mar 2, 2026, 2:29 PM

got a line that needs to split in two, is this tee the kind with all three ends the same size

Answer by: Customer Support on Mar 4, 2026, 6:06 AM

For branching one hydraulic line into two, this union tee gives you three matching male DIN tube connections, all M30 x 2.0 (size S20), so each port is the same thread and connection type.

Question by: Jerry L on Aug 29, 2025, 10:42 AM

Will this tee work with standard hydraulic lines, or do I need special DIN fittings?

Answer by: Customer Support on Aug 31, 2025, 6:22 AM

This union tee is designed with three M30 x 2.0 male DIN tube connections, so it requires mating DIN fittings to ensure a secure, leak-resistant seal.
