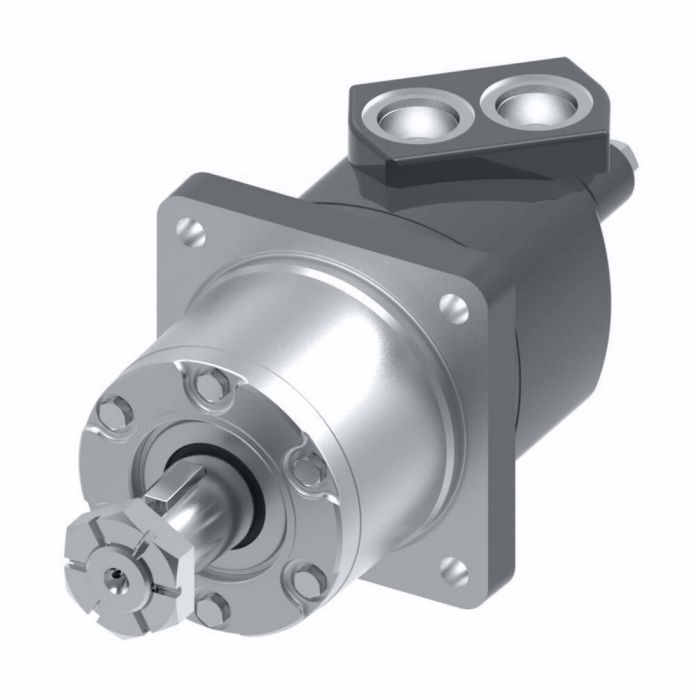

CHAR-LYNN 6K-006 MOTOR

Ask A Question

Description & Features

Designed for demanding mobile equipment applications, the Char-Lynn 6K-006 Motor is a low-speed, high-torque Geroler motor built for use in mowing, snow removal, trenching, sprayer, and wood processing equipment. Cast iron construction supports durability in field conditions where reliability under sustained load is essential.

With a torque rating of 1,155 Nm and a maximum flow rate of 150 litres per minute, this motor is well suited to wheel drive and direct-drive configurations. Available in standard, wheel, and bearingless formats, it offers flexibility across a range of mounting requirements. The disc Geroler design is noted for its low pressure drop, contributing to efficient hydraulic system performance without sacrificing output.

SKU: 113-1057

Supplier Part Number (MPN): 113-1057-006

Alternate Part Numbers: C1JW95

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Design Code
6
Dimensions
12.03 in L x 6.55 in W x 6.55 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
390
Housing Material
Iron
Mounting Type
4-Bolt Wheel Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
Without Painted
Port Location
Side, Staggered
Port Type
Manifold
Seal Material
NBR
Segment Code
A
Series
6000 Series
Shaft Size
1-3/4 in Dia
Shaft Type
Tapered Straight Square Keyed
Valve Type
Disc

Product Questions & Answers (1)

Question by: Floyd R on Jun 11, 2025, 12:32 PM
So, this motor is cast iron, right? That should hold up pretty good, shouldn't it?
Answer by: Customer Support on Jun 13, 2025, 8:44 AM
Yes, that's right. The cast iron construction definitely adds to its durability, especially for tough jobs in mobile equipment applications like mowing and trenching where it's gonna take a beating.
