CHARLYNN

Description & Features

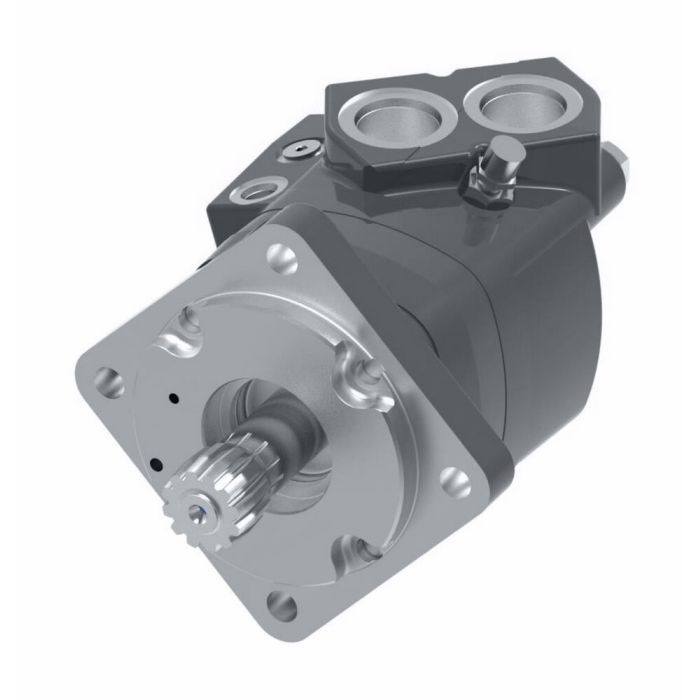

Designed for mobile equipment applications including snow removal, mowing, sprayer, and trencher use, this cast iron Geroler motor delivers a torque rating of 930 Nm and supports flow rates up to 150 litres per minute. The disc Geroler design is recognized for its low pressure drop characteristics, contributing to efficient energy use across demanding mobile hydraulic circuits.

The Char-Lynn 2000 Series is available in standard, wheel, and bearingless configurations, making it adaptable across a range of mounting and drivetrain requirements. The bearingless design suits applications where external bearing support is provided by the driven shaft or hub assembly. Cast iron construction supports durability in field environments.

SKU: 114-1033

Supplier Part Number (MPN): 114-1033-006

Specifications

Brand Danfoss	Bearing Type Bearingless	Check Valve Function With Check Valve Function	Design Code 6	Dimensions 8.41 in L x 5.81 in W x 5.81 in H	Drain Port Dimension 7/16-20 UNF-2B SAE O-ring	Frame Size 310	Housing Material Iron	Mounting Type 4-Bolt Flanged	Orbital Gearwheel Set Standard	Orbital Gearwheel Set Type Geroler	Painted Without Painted	Port Location Side, Staggered	Port Type UN-2B, SAE O-ring	Seal Material Nitrile	Segment Code B	Series 6000 Series	Valve Type Disc

Product Questions & Answers (1)

Question by: Gene S on Oct 22, 2025, 1:41 PM

For snow removal, what kinda flow rate we talkin' here?

Answer by: Customer Support on Oct 24, 2025, 6:12 AM

This Char-Lynn Geroler motor can handle flow rates up to 150 liters per minute, which should be plenty for most snow removal applications.
