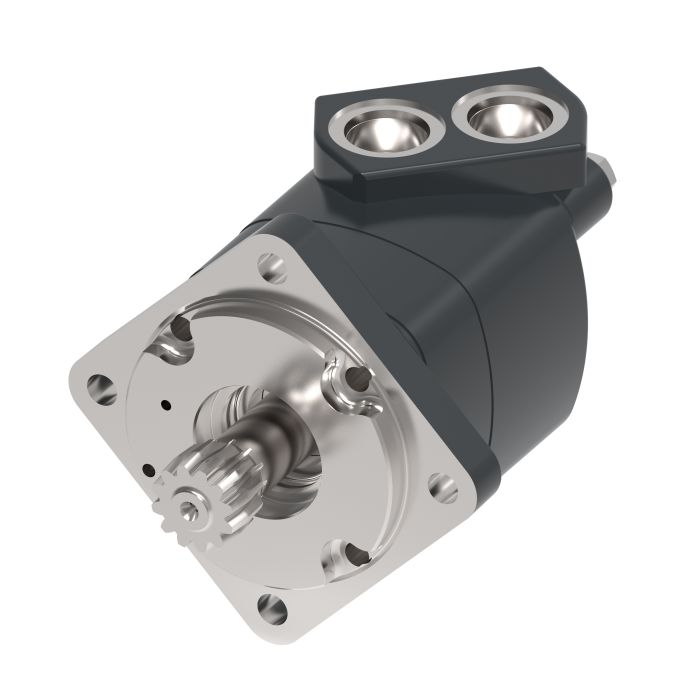

main product photo

CHAR LYNN M06150AA00AA06000000000000000F

Ask A Question

Description & Features

Designed for mobile equipment applications including snow removal, mowing, trenching, and wood processing, this bearingless Geroler motor delivers reliable low-speed, high-torque performance in demanding field conditions. Cast iron construction provides durability suited to the rigors of mobile hydraulic systems.

The Char-Lynn M06150AA00AA06000000000000000F is a 2000 Series Disc Geroler motor from Danfoss/Eaton, rated for a torque output of 735 Nm and a flow rate of 150 litres per minute. The highly efficient Geroler design contributes to energy savings across the hydraulic circuit, while the motor's notably low pressure drop sets it apart within its class. Available in standard, wheel, or bearingless configurations, it offers flexibility across a range of mounting and drive requirements.

SKU: 114-1069

Supplier Part Number (MPN): 114-1069-006

Specifications

Brand
Danfoss
Bearing Type
Bearingless
Check Valve Function
Without Check Valve Function
Design Code
6
Dimensions
7.62 in L x 5.81 in W x 5.81 in H
Drain Port Dimension
9/16-18 UNF-2B SAE O-ring
Frame Size
245
Housing Material
Iron
Mounting Type
4-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
Without Painted
Port Location
Side, Staggered
Port Type
UN-2B, SAE O-ring
Seal Material
Nitrile
Segment Code
B
Series
6000 Series
Valve Type
Disc

Product Questions & Answers (1)

Question by: Cody W on Nov 16, 2025, 1:36 PM
What kind of metal is this motor made outta? Gotta make sure it can handle the weather.
Answer by: Customer Support on Nov 17, 2025, 2:19 PM
It's made from cast iron, so it's pretty durable for outdoor hydraulic systems.
