Female Din Soft Seal Union

Description & Features

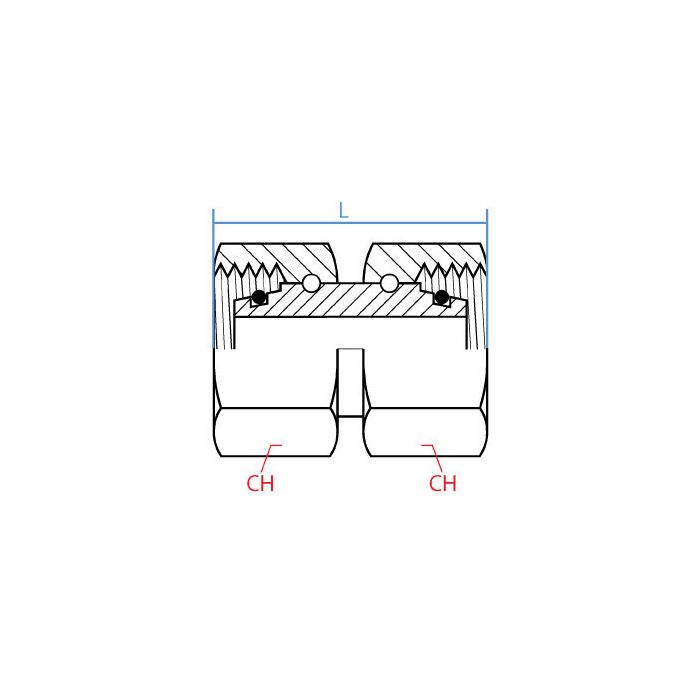

This Adaptall female DIN soft seal union features a straight shape and steel construction.

This female DIN soft seal union features two ports with M36 x 2.0 callouts and S25 size, suitable for DIN tube connections.

SKU: 5300S-25

Supplier Part Number (MPN): 5300S-25

Specifications

Brand adapt-all	Connection Size 1 S25	Connection Size 2 S25	Connection Type Female Metric Swivel	Connection Type 1 Female DIN Tube Swivel	Connection Type 2 Female DIN Tube Swivel	Dimension Standards DIN 2353, ISO 8434-1	Dimensions 60 mm L	Finish Zinc-Plated	Fitting Type Union	Material Steel	Material Construction Carbon Steel	Series 5300 Series	Thread Size M36x2

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size	Hex Size
5300S-06	6 mm	6 mm	M14x1.5	17 mm
5300S-08	8 mm	8 mm	M16x1.5	19 mm
5300S-10		10 mm	M18x1.5	22 mm
5300S-12	L12	12 mm	M20x1.5	24 mm
5300S-16	S16	S16	M24x1.5
5300S-20	20 mm	20 mm	M30x2	36 mm
5300S-30	30 mm	S30	M42x2

Product Questions & Answers (3)

Question by: Keith M on Dec 16, 2025, 10:20 AM

got two DIN tube ends that are both M36 x 2.0, will this union join em together straight?

Answer by: Customer Support on Dec 18, 2025, 6:29 AM

Built for joining two DIN tube connections in a straight run, it has female ports on both sides with M36 x 2.0 threads in size S25.

Question by: Brenda C on Sep 25, 2025, 10:39 AM

What kind of hydraulic fluid would be best in this fitting?

Answer by: Customer Support on Sep 26, 2025, 12:57 PM

This fitting doesn't have any specific fluid requirements mentioned, but it's made of steel, so be sure to use a fluid compatible with that material to prevent corrosion.

Question by: Stan L on Sep 19, 2025, 8:40 PM

Both ports on this union show M36 x 2.0 and S25 sizing, does that mean it only works as a straight through connection between two DIN tube lines of the same size?

Answer by: Customer Support on Sep 21, 2025, 8:05 AM

Correct. Both sides are identical, M36 x 2.0 thread with an S25 sizing, so you're looking at a union that joins two same-size DIN tube connections in a straight line. No reducing, no angling. If your application needs two matching DIN soft seal tube ends brought together, this fits that role exactly. The straight configuration and matching callouts on both ports confirm it's built for that one specific job.
