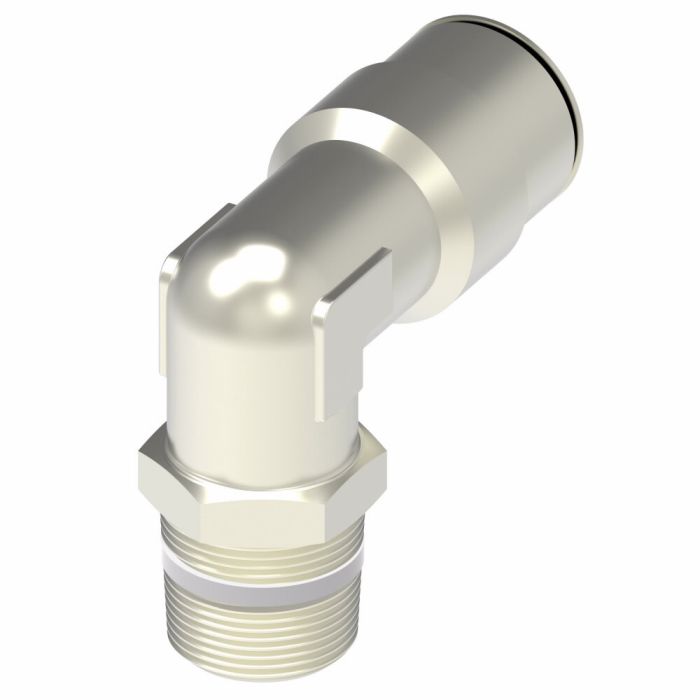

This Eaton Aeroquip push to connect swivel elbow adapter is constructed of brass with Dura-Kote plating for superior corrosion resistance. The Danfoss / Eaton Male EL SWVL offers design flexibility with hundreds of styles to choose from and provides higher operating pressures above SAE standards.
The fitting can be used with all types of tubing from Nylon to 90A durometer Polyurethane, including Polyethylene, and PVC tubing. It has a 0.25" BSPP male end and a push-to-connect female end.
SKU: 1169X4MX4PTS
Supplier Part Number (MPN): 1169X4MX4PTS
Alternate Part Numbers: C1HM36
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberC1HM36, Alternate Part Number MINO-00015X02500
Application
Use with all types of tubing from Nylon to 90A durometer Polyurethane, including Polyethylene, and PVC tubing.
Drop Dimension
0.84
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 1
0.25
End Type 1
BSPP
End Type 2
Push to Connect
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
ICC
Elbow Adapters
Item Type
Push to Connect /NPTF Male 90° Elbow Adapter
Language
English
Net Pack Quantity Units
EA
NMFC
50
Product Material
Brass
Product Width
0.55
Sub Brand
Weatherhead
Supplier Part Number
1169X4MX4PTS
Product Weight
0.06 lbs
Product Questions & Answers (2)
Question by: Jerry J on Apr 13, 2025, 3:37 PM
what kinda tubing does this push-to-connect fitting work with, cause we run a mix of poly and PVC lines out in the shop
Answer by: Customer Support on Apr 15, 2025, 6:18 AM
Pretty broad compatibility on this one. It works with nylon, polyethylene, PVC, and polyurethane tubing up to 90A durometer hardness. So if you're running a mix of those materials, you're covered without needing to swap fittings between lines.
Question by: Judy E on Dec 10, 2025, 11:58 AM
got some 1/4 tubing on a little air setup, will this elbow work with nylon or polyurethane line?
Answer by: Customer Support on Dec 12, 2025, 6:24 AM
For tubing, it’s meant to be used with a wide range, including Nylon, Polyethylene, PVC, and 90A durometer Polyurethane, and it connects on the tube side with a push to connect end.
