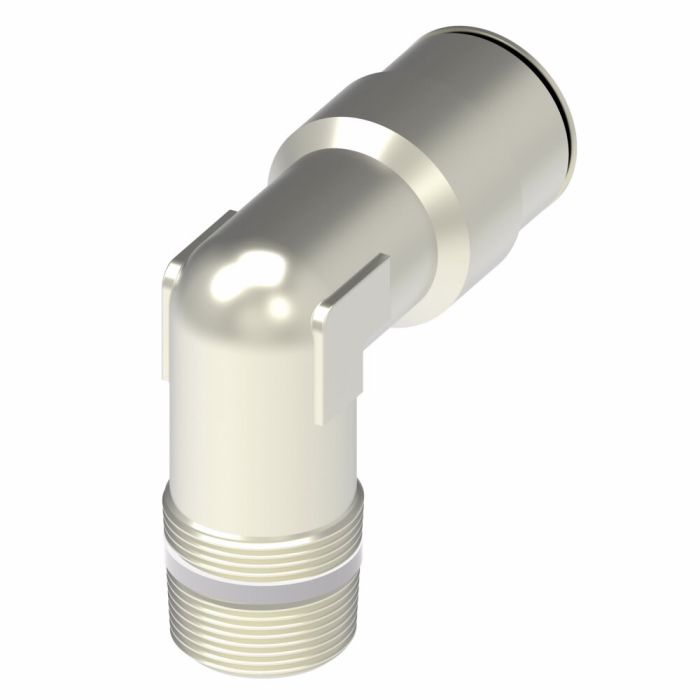

main product photo

Male Elbow

Ask A Question

Description & Features

Constructed from brass with Dura-Kote plating for strong corrosion resistance, this 90° Male Elbow adapter from Eaton Aeroquip's Weatherhead line connects a 1/4 in. BSPP male thread to a push-to-connect female fitting in a compact elbow configuration. Designed to perform above SAE pressure standards, it suits demanding fluid transfer applications where a reliable, angled connection is required.

Compatible with a broad range of flexible tubing materials, including Nylon, Polyethylene, PVC, and Polyurethane up to 90A durometer, the fitting offers broad adaptability across industrial fluid systems. The Weatherhead series provides hundreds of configuration styles, making it straightforward to source the right adapter geometry for a given installation.

SKU: 1169X6MX4PT

Supplier Part Number (MPN): 1169X6MX4PT

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
6 mm
Connection Size 2
1/4 in
Connection Type
Male BSP, Push-Fit
Connection Type 1
Male BSPP
Connection Type 2
Female Push-to-Connect
Drop Dimensions
0.92 in
Finish
Nickel-Plated
Fitting Type
90 deg Elbow
For Use With
MTP160 Series Nylon Tubings
Material
Brass
Material Construction
Brass
Series
1169X Series
Thread Sealant
Without Thread Sealant

Product Questions & Answers (1)

Question by: Kurt F on Feb 28, 2026, 5:06 PM
got a quarter-inch line in nylon. will this elbow work with that, or is it picky about tubing?
Answer by: Customer Support on Mar 2, 2026, 6:50 AM
For tubing, it is meant to be used with a wide range, including Nylon and 90A durometer Polyurethane, plus Polyethylene and PVC. The push to connect end is the side meant to grab the tubing.
