F Din X Mbspp Es Seal

Ask A Question

Description & Features

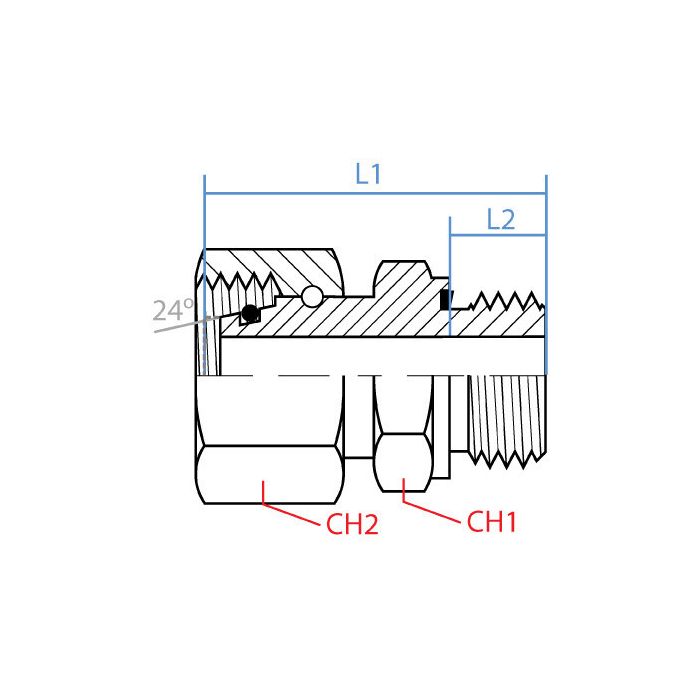

This straight steel adapter fitting features a female DIN tube end with M22 x 1.5 threads, and a male BSPP end with G 1/2 - 14 threads and an ES seal. The F Din X Mbspp Es Seal is manufactured by Adaptall.

The Side 1 (DIN tube) end has a size of S14 and a wrench flat of 27mm. The Side 2 (BSPP) end has a size of 1/2" and a wrench flat of 27mm. The Adaptall L1 Length is 50.5mm, and the Adaptall L2 Length is 14mm.

SKU: 5302S-14-08

Supplier Part Number (MPN): 5302S-14-08

Specifications

Brand
adapt-all
Connection Size 1
14 mm
Connection Size 2
1/2 in
Connection Type
Female Metric Swivel, Male BSP
Connection Type 1
Female DIN 24 deg Tube Swivel
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353
Dimensions
50.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
5302 Series
Thread Size
M22x1.5 x 1/2-14

Product Questions & Answers (2)

Question by: Rhonda R on Sep 12, 2025, 3:40 PM
got a hose end that’s female DIN M22 x 1.5, will this adapter mate up to a G 1/2 - 14 male BSPP on the other side?
Answer by: Customer Support on Sep 13, 2025, 4:57 PM
On the DIN side, you are looking at a female DIN tube end with M22 x 1.5 threads (size S14). The other end is a male BSPP with G 1/2 - 14 threads and an ES seal, so it is meant to connect those two thread types in a straight adapter.
Question by: Diane C on Dec 7, 2025, 8:53 PM
Will this fitting work for connecting a DIN tube to a BSPP fitting?
Answer by: Customer Support on Dec 9, 2025, 8:46 PM
Yes, this straight adapter fitting is designed to connect a female DIN tube end with M22 x 1.5 threads to a male BSPP end with G 1/2 - 14 threads.
