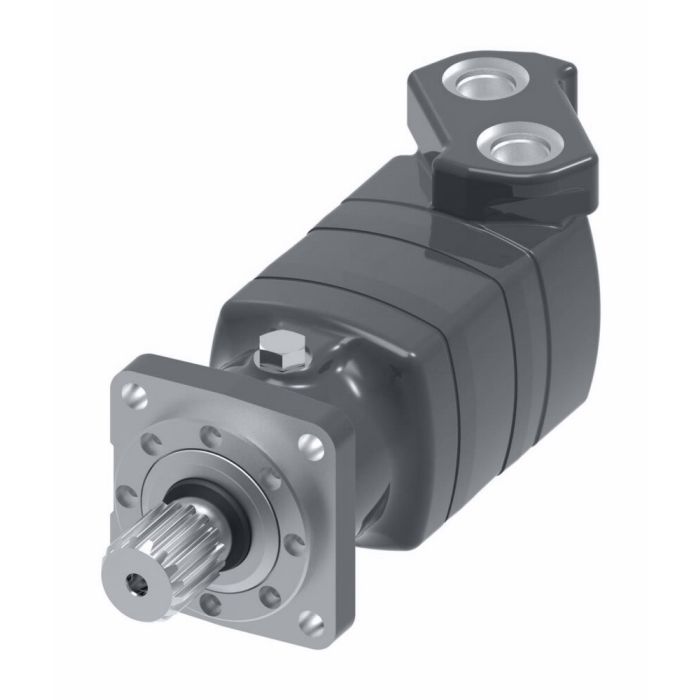

CHARLYN MOTOR

Description & Features

Designed for demanding industrial environments, the Char-Lynn 10000 Series Disc Geroler Motor delivers a torque rating of 2,700 Nm and supports flow rates up to 170 litres per minute. The cast iron construction provides durability across heavy-duty applications including boring, metal forming, saw mill equipment, and port equipment.

This Charlyn Motor is available in standard, wheel, or bearingless configurations, offering flexibility to suit different mounting and drive requirements. The Geroler motor design is recognized for low pressure drop characteristics and efficient energy use, making it well-suited to low-speed, high-torque applications in industrial settings.

SKU: 119-1035

Supplier Part Number (MPN): 119-1035-003

Alternate Part Numbers: C1JX17

Specifications

Brand Danfoss	Bearing Type Tapered Roller	Check Valve Function Without Check Valve Function	Design Code 3	Dimensions 17.74 in L x 5.91 in W x 5.79 in H	Drain Port Dimension 9/16-18 UNF-2B SAE O-ring	Frame Size 940	Housing Material Iron	Mounting Type 4-Bolt Square Flanged	Orbital Gearwheel Set Standard	Orbital Gearwheel Set Type Geroler	Painted Without Painted	Port Location Side, Staggered	Port Type UN-2B, SAE O-ring	Seal Material NBR	Segment Code A	Series 10000 Series	Shaft Size 2-1/8 in Dia	Shaft Type Splined	Valve Type Disc

Similar Products

Model Number	Port Type	Shaft Type	Shaft Size	Dimensions	Segment Code
119-1043 10000 Series Geroler Motor	UNC-2B, Code 61 Split Flange	Straight Keyed		17.74 in L x 5.91 in W x 5.79 in H	A
119-1029 10000 Series Geroler Motor	UN-2B, SAE O-ring	Straight Keyed		17.74 in L x 5.91 in W x 5.79 in H	A
119-1031 10000 Series Geroler Motor	UN-2B, SAE O-ring	Straight Keyed		17.74 in L x 5.91 in W x 5.79 in H	A
119-1028 10000 Series Geroler Motor	UN-2B, SAE O-ring	Straight Keyed		17.74 in L x 5.91 in W x 5.79 in H	A
119-1030 10000 Series Geroler Motor	UN-2B, SAE O-ring	Straight Keyed		17.74 in L x 5.91 in W x 5.79 in H	A
119-1042 10000 Series Geroler Motor	UNC-2B, Code 61 Split Flange	Straight Keyed		17.74 in L x 5.91 in W x 5.79 in H	B
119-1032	UN-2B, SAE O-ring	Splined	2-1/8 in Dia	17.74 in L x 5.91 in W x 5.79 in H	B
119-1033	UN-2B, SAE O-ring	Splined	2-1/8 in Dia	17.74 in L x 5.91 in W x 5.79 in H	A
119-1034	UN-2B, SAE O-ring	Splined	2-1/8 in Dia	17.74 in L x 5.91 in W x 5.79 in H	A
119-1036	UN-2B, SAE O-ring	Tapered Square Keyed		17.24 in L x 5.91 in W x 5.79 in H
119-1037	UN-2B, SAE O-ring	Tapered Square Keyed		17.74 in L x 5.91 in W x 5.79 in H	B
119-1038	UN-2B, SAE O-ring	Tapered Square Keyed		17.74 in L x 5.91 in W x 5.79 in H	B
119-1039	UN-2B, SAE O-ring	Tapered Square Keyed		18.46 in L x 5.91 in W x 5.79 in H	B
119-1040	UNC-2B, Split Flange	Straight Keyed		17.24 in L x 5.91 in W x 5.79 in H	A
119-1041	UNC-2B, Split Flange	Straight Keyed		17.74 in L x 5.91 in W x 5.79 in H	B
