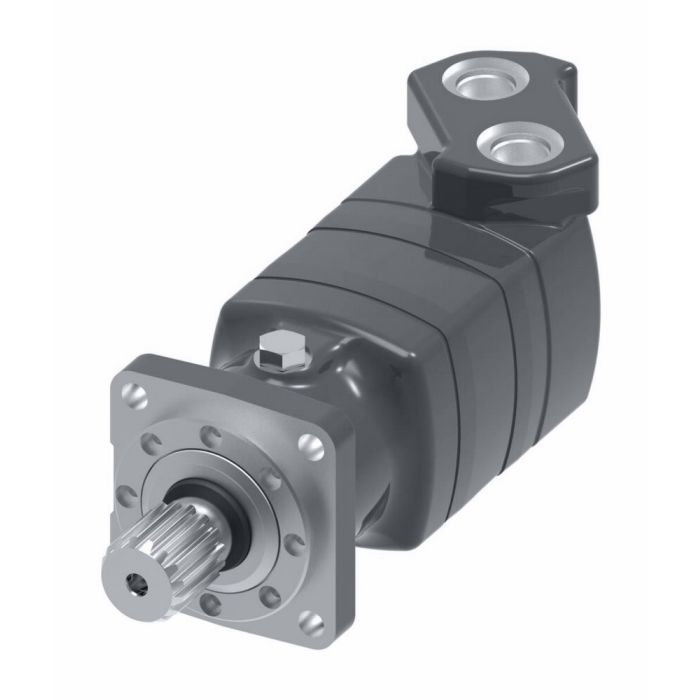

CHARLYN MOTOR

Description & Features

The Danfoss Power Solutions II LLC (Char-Lynn) motor offers a high-efficiency solution designed for industrial metal forming port equipment boring and saw mill applications. With its disc Geroler technology this motor is recognized for its superior energy savings and low-pressure drop making it one of the most efficient motors in its class.

Constructed from durable cast iron and featuring a width of 5.91 inches this reliable component delivers a torque rating of 1475 newton meter catering to demanding industrial settings. Available in standard wheel or bearingless configurations it meets diverse operational needs seamlessly.

As a non-calibrated non-adjustable unit it ensures consistent performance without the need for additional adjustments. The Char-Lynn motor does not include components such as a battery blades case check valve remote control or switch connector ensuring focused functionality for specific applications.

Supplier Part Number: 119-1041-003

Specifications

Brand Danfoss	Bearing Type Tapered Roller	Check Valve Function Without Check Valve Function	Design Code 3	Dimensions 17.74 in L x 5.91 in W x 5.79 in H	Drain Port Dimension 9/16-18 UNF-2B SAE O-ring	Frame Size 480	Housing Material Iron	Mounting Type 4-Bolt Square Flanged	Orbital Gearwheel Set Standard	Orbital Gearwheel Set Type Geroler	Painted Without Painted	Port Location Side, Staggered	Port Type UNC-2B, Split Flange	Seal Material NBR	Segment Code B	Series 10000 Series	Shaft Type Straight Keyed	Valve Type Disc

Similar Products

Model Number	Port Type	Shaft Type	Shaft Size	Dimensions	Segment Code
119-1043 10000 Series Geroler Motor	UNC-2B, Code 61 Split Flange	Straight Keyed		17.74 in L x 5.91 in W x 5.79 in H	A
119-1029 10000 Series Geroler Motor	UN-2B, SAE O-ring	Straight Keyed		17.74 in L x 5.91 in W x 5.79 in H	A
119-1031 10000 Series Geroler Motor	UN-2B, SAE O-ring	Straight Keyed		17.74 in L x 5.91 in W x 5.79 in H	A
119-1028 10000 Series Geroler Motor	UN-2B, SAE O-ring	Straight Keyed		17.74 in L x 5.91 in W x 5.79 in H	A
119-1030 10000 Series Geroler Motor	UN-2B, SAE O-ring	Straight Keyed		17.74 in L x 5.91 in W x 5.79 in H	A
119-1042 10000 Series Geroler Motor	UNC-2B, Code 61 Split Flange	Straight Keyed		17.74 in L x 5.91 in W x 5.79 in H	B
119-1032	UN-2B, SAE O-ring	Splined	2-1/8 in Dia	17.74 in L x 5.91 in W x 5.79 in H	B
119-1033	UN-2B, SAE O-ring	Splined	2-1/8 in Dia	17.74 in L x 5.91 in W x 5.79 in H	A
119-1034	UN-2B, SAE O-ring	Splined	2-1/8 in Dia	17.74 in L x 5.91 in W x 5.79 in H	A
119-1035	UN-2B, SAE O-ring	Splined	2-1/8 in Dia	17.74 in L x 5.91 in W x 5.79 in H	A
119-1036	UN-2B, SAE O-ring	Tapered Square Keyed		17.24 in L x 5.91 in W x 5.79 in H
119-1037	UN-2B, SAE O-ring	Tapered Square Keyed		17.74 in L x 5.91 in W x 5.79 in H	B
119-1038	UN-2B, SAE O-ring	Tapered Square Keyed		17.74 in L x 5.91 in W x 5.79 in H	B
119-1039	UN-2B, SAE O-ring	Tapered Square Keyed		18.46 in L x 5.91 in W x 5.79 in H	B
119-1040	UNC-2B, Split Flange	Straight Keyed		17.24 in L x 5.91 in W x 5.79 in H	A

Product Questions & Answers (3)

Question by: Terry T on Oct 22, 2025, 6:11 AM

got a hydraulic setup that needs decent flow, what’s the max flow rate on this Char-Lynn motor?

Answer by: Customer Support on Oct 23, 2025, 7:28 AM

For flow capacity, it is rated up to 170 litre per minute.

Question by: Donna C on Sep 22, 2025, 10:26 AM

What kind of applications is this motor typically used for? I'm seeing a few different things mentioned.

Answer by: Customer Support on Sep 24, 2025, 6:10 AM

This Char-Lynn motor is well-suited for applications like boring, saw mills, metal forming, and port equipment. It's designed to handle the demands of industrial settings.

Question by: Ronnie M on Jan 11, 2026, 2:33 PM

motor puts out 1475 newton meters of torque -- is that enough for heavy sawmill work or is this more of a light-duty unit?

Answer by: Customer Support on Jan 12, 2026, 7:49 PM

For sawmill applications, 1475 Nm is a substantial torque output and falls well within the demands of that kind of work. The 10000 Series was specifically built with saw mill use in mind, along with other heavy industrial tasks like metal forming and boring. The cast iron construction backs that up too. This isn't a light-duty motor by any stretch.
