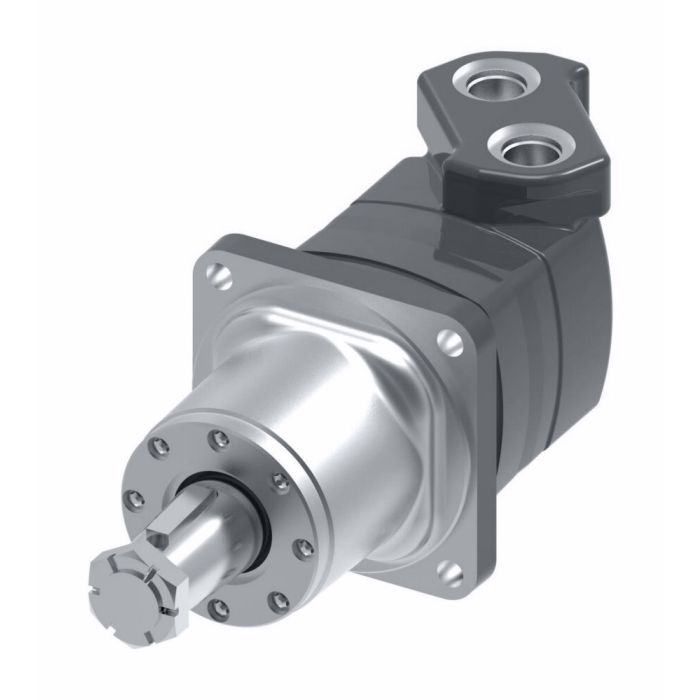

CHAR-LYNN MOTOR

Ask A Question

Description & Features

The Char-Lynn motor is a 10000 series disc geroler wheel motor suitable for boring, industrial, metal forming, port equipment, and saw mill applications. Highly-efficient Geroler design provides energy savings. It features a standard wheel or bearingless configuration and the lowest pressure drop in the industry.

This cast iron motor has a 170 liter per minute flow rate and a 2085 newton metre torque rating. Measures 7.28 inches wide.

SKU: 120-1007

Supplier Part Number (MPN): 120-1007-003

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
Without Check Valve Function
Design Code
3
Dimensions
16.13 in L x 7.28 in W x 7.28 in H
Drain Port Dimension
9/16-18 UNF-2B SAE O-ring
Frame Size
665
Housing Material
Iron
Mounting Type
4-Bolt Wheel Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
Without Painted
Port Location
Side, Staggered
Port Type
UN-2B, SAE O-ring
Seal Material
NBR
Series
10000 Series
Shaft Type
Straight Square Keyed
Valve Type
Disc

Product Questions & Answers (1)

Question by: Harvey W on May 18, 2025, 2:09 PM
Hey, will this Char-Lynn motor work for a sawmill application? That's what I'm mainly looking at it for.
Answer by: Customer Support on May 20, 2025, 6:06 AM
Absolutely. This Char-Lynn motor is well-suited for sawmill applications, according to the description. It's also good for boring, industrial, metal forming, and port equipment tasks.
