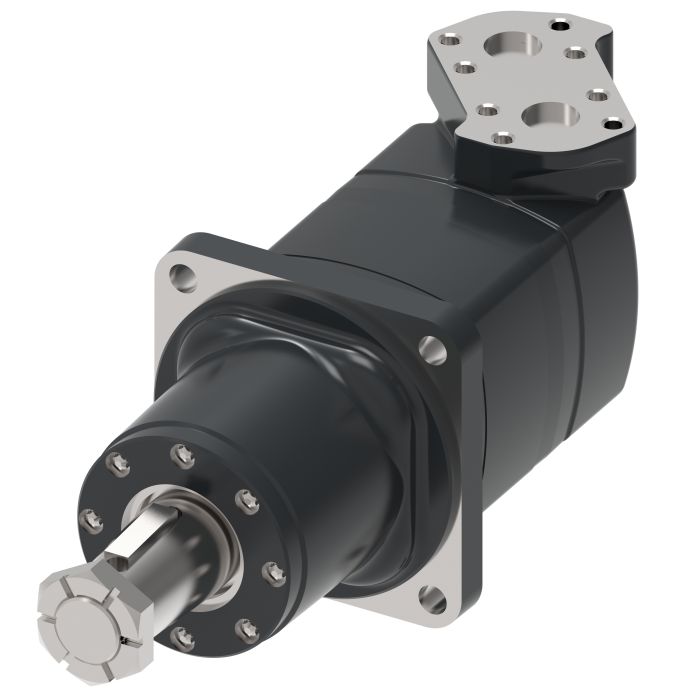

DANFOSS / EATON MOTOR 10K M1040B02B0000C

Ask A Question

Description & Features

Built for demanding low-speed, high-torque applications, the Danfoss / Eaton Motor 10K M1040B02B0000C is a cast iron Geroler hydraulic motor rated at 2,085 Newton metres of torque and supporting flow rates up to 170 litres per minute. Its disc Geroler design is recognized for delivering a low pressure drop, which translates directly to measurable energy efficiency across extended duty cycles.

Available in standard, wheel, or bearingless configurations, this Char-Lynn motor is well suited to a range of industrial applications including boring, metal forming, saw mill equipment, and port equipment. The bearingless option provides flexibility where space or mounting constraints are a factor. Cast iron construction supports the structural demands typical of heavy industrial use.

SKU: 120-1027

Supplier Part Number (MPN): 120-1027-003

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
Without Check Valve Function
Design Code
3
Dimensions
18.13 in L x 7.28 in W x 7.28 in H
Drain Port Dimension
9/16-18 UNF-2B SAE O-ring
Frame Size
665
Housing Material
Iron
Mounting Type
4-Bolt Wheel Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
Without Painted
Port Location
Side, Staggered
Port Type
UNC-2B, Split Flange
Seal Material
NBR
Segment Code
B
Series
10000 Series
Shaft Type
Tapered Square Keyed
Valve Type
Disc

Product Questions & Answers (2)

Question by: Kurt S on Aug 1, 2025, 8:58 AM
Wondering if this motor can handle continuous duty in a sawmill application?
Answer by: Customer Support on Aug 2, 2025, 2:28 PM
Designed for applications like sawmills, this Eaton Char-Lynn motor boasts a highly-efficient Geroler design, which should contribute to energy savings and reliable performance under sustained use.
Question by: Ralph B on Jun 26, 2025, 12:56 PM
got an older Char-Lynn 10K wheel motor, is this M1040B02B0000C the same 10000 series disc geroler style?
Answer by: Customer Support on Jun 28, 2025, 7:10 AM
Within Eaton Char-Lynn naming, it’s a 10000 Series disc Geroler wheel motor. It’s also identified under supplier part number 120-1027-003, which is useful if you are matching to an existing part tag.
