F Din X Male Npt

Ask A Question

Description & Features

Constructed from steel in a straight configuration, this Adaptall adapter connects a female Din Tube end (M52 x 2.0 thread) to a male 1-1/2" NPTF port, making it a practical solution for transitioning between DIN metric tube fittings and NPT-threaded hydraulic components. The female Din side carries an L42 designation, while the male NPT side is sized at 1-1/2", 11.5 NPTF.

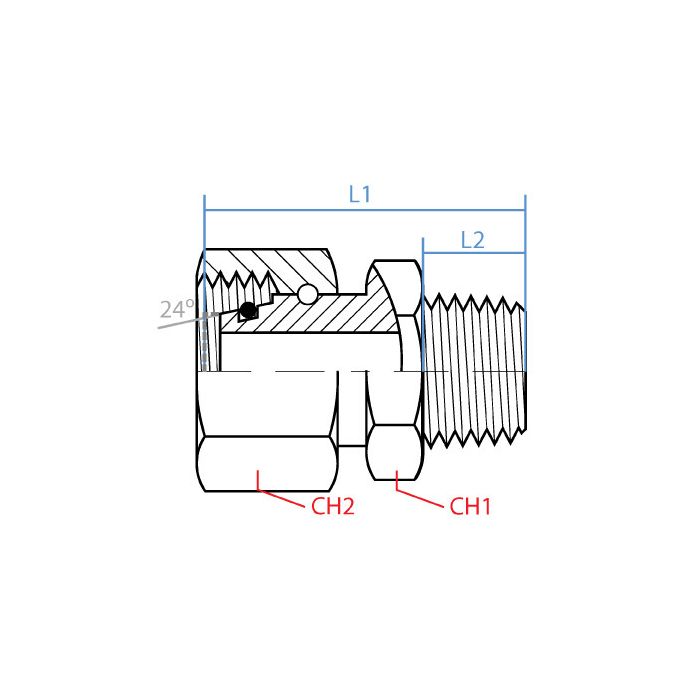

The F Din X Male Npt measures 65mm in overall length (L1) with a secondary length (L2) of 26mm. Wrench flats measure 50mm across on side one and 60mm on side two, allowing for secure installation with standard tooling. The all-steel construction suits demanding hydraulic service environments where durability and thread integrity are priorities.

SKU: 5307L-42-24

Supplier Part Number (MPN): 5307L-42-24

Specifications

Brand
adapt-all
Connection Size 1
L42
Connection Size 2
1-1/2 in
Connection Type
Female Metric Swivel, MNPT
Connection Type 1
Female DIN 24 deg Tube Swivel
Connection Type 2
Male NPT
Dimension Standards
ANSI B1.20.3, DIN 2353
Dimensions
65 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
50 mm, 60 mm
Material
Steel
Material Construction
Carbon Steel
Series
5307 Series
Thread Size
M52x2 x 1-1/2-11-1/2

Product Questions & Answers (2)

Question by: Carl S on Dec 4, 2025, 4:52 PM
What's the overall length of this fitting?
Answer by: Customer Support on Dec 6, 2025, 4:25 PM
It measures 65mm in overall length (L1) and 26mm for the secondary length (L2).
Question by: Todd B on Apr 15, 2025, 6:32 PM
What exactly is this adapter doing, connection-wise? I got a DIN metric tube fitting on my hydraulic line and need to tie into a 1-1/2 inch NPT port on a valve block.
Answer by: Customer Support on Apr 17, 2025, 6:38 AM
That's exactly the transition this piece handles. One end accepts a female DIN tube fitting with an M52 x 2.0 thread, designated L42. The other end is a male 1-1/2 inch NPTF thread at 11.5 threads per inch, which seats directly into a standard NPT port. Steel construction throughout, straight configuration, so there's no angle to account for during routing.
