PVM018MR03AE01AAA28000000A0A

Ask A Question

Description & Features

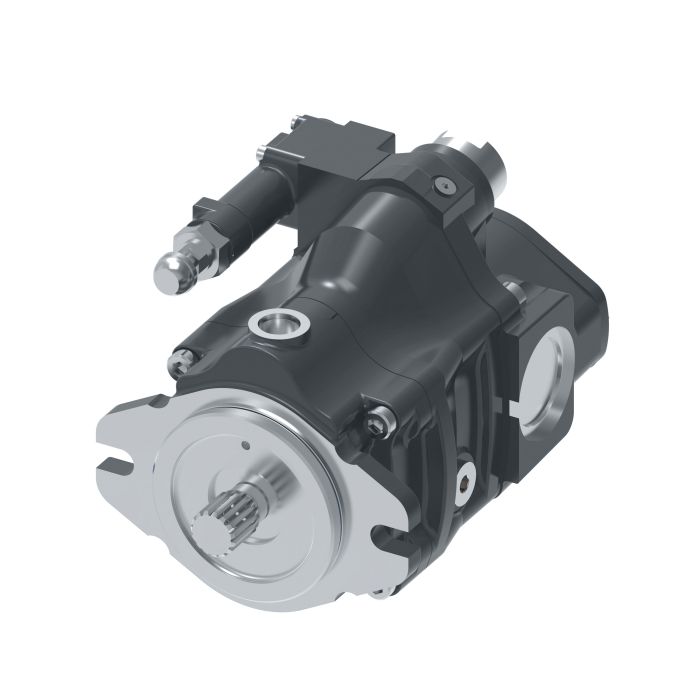

The Vickers by Danfoss / Eaton PVM Series Open Circuit Piston Pump, model PVM018MR03AE01AAA28000000A0A, is designed for demanding applications such as mining machinery, injection molding machines, and metal forming machines. It also excels in oil and gas equipment, conveyor lines, primary metals processing, and metal cutting equipment.

This Vickers pump offers outstanding performance with a design that reduces noise by 50%. This unit features an adjustable max displacement stop and contains a single shaft seal. It is also Pro-FX ready, with updated IO from Danfoss Power Solutions.

SKU: 123AL00216A

Supplier Part Number (MPN): 123AL00216A

Specifications

Brand
Vickers by Danfoss
Control Type
Pressure Compensator
Dimensions
9.98 in L x 5.66 in W x 6.45 in H
Drive Shaft Type
9 Teeth Splined
Fluid Compatibility
High Water Content Hydraulic Fluid, Petroleum Based Fluid, Phosphate Ester Fluid, Synthetic Fluid
Housing Color
Black
Housing Material
Iron
Inlet Type
SAE J744-82-2
Input Rotation
Clockwise (Right-Hand)
Model
PVM018
Mounting Type
2-Bolt Flanged
nmfc
125820
Outlet Type
SAE J744-82-2
Paint
Black
Port Options
SAE J514 Tube Ports SAE Auxiliary Ports
Pump Special Features
Adjustable Max Displacement Stop (Contains Single Shaft Seal)
Rotation Direction
Clockwise (Right Hand)
Segment Code
C
Series
M Series
Special Features
Adjustable Max Displacement Stop (Contains Single Shaft Seal)

Product Questions & Answers (1)

Question by: Steve R on Sep 24, 2025, 11:45 AM
pump's got the noise reduction feature listed, how much quieter are we actually talking compared to a standard piston pump?
Answer by: Customer Support on Sep 25, 2025, 6:52 PM
About half the noise output of a conventional unit. The PVM018MR03AE01AAA28000000A0A is rated at 50% noise reduction, which in a production environment like a metal forming or injection molding setup can make a real difference over a long shift. That kind of quieter operation tends to be one of the first things operators notice when this pump replaces an older unit.
