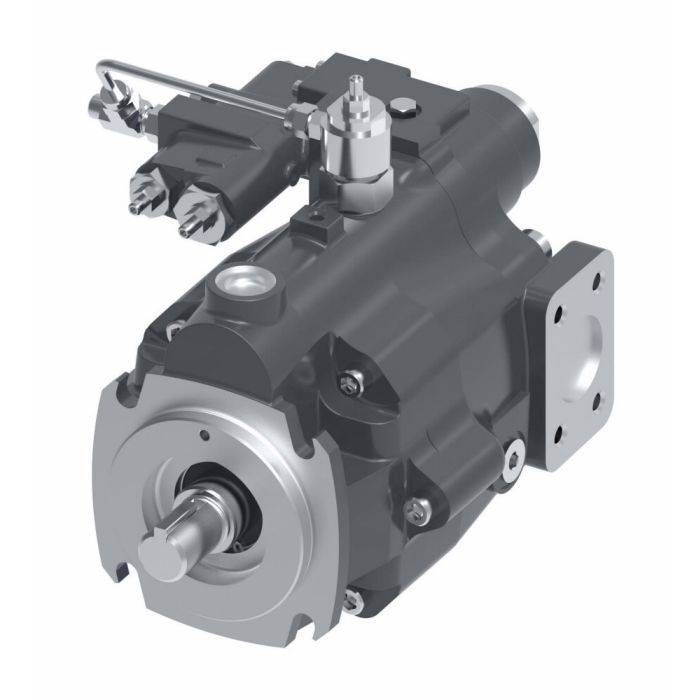

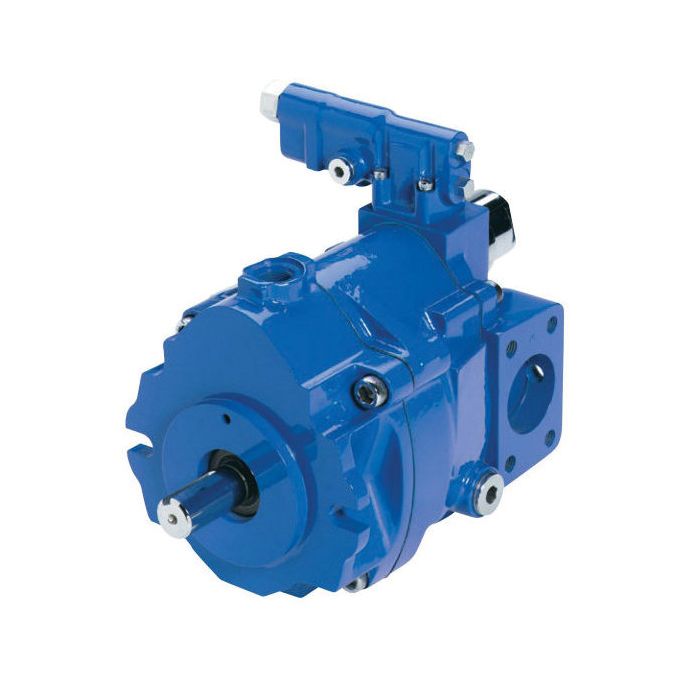

main product photo

VICKERS PVM074ER09GS02AAF00200000A0A

Ask A Question

Description & Features

Designed for demanding industrial hydraulic systems, the Vickers PVM074ER09GS02AAF00200000A0A is an open-circuit piston pump built to perform across a range of high-load applications. Typical uses include mining machinery, injection molding machines, metal forming and metal cutting equipment, oil and gas equipment, conveyor lines, and primary metals processing.

This pump features an adjustable maximum displacement stop, giving engineers precise control over flow output without full disassembly. It contains a single shaft seal and carries a product width of 12.04 inches. As a Vickers-branded industrial piston pump, it is suited to fixed and mobile hydraulic circuits where reliable displacement control is a priority.

SKU: 123AL00277A

Supplier Part Number (MPN): 123AL00277A

Specifications

Brand
Vickers by Danfoss
Auxiliary Mounting
Auxiliary Mount Cover Plate
Control Type
Pressure Compensator
Design Code
A
Dimensions
15.38 in L x 12.04 in W x 8.66 in H
Drive Shaft Type
Straight Keyed
Housing Material
Iron
Inlet Type
SAE J744-127-4
Main Port Location
Side
Model
PVM074
Mounting Type
4-Bolt Flanged
Outlet Type
SAE J744-127-4
Pump Special Features
Adjustable Max Displacement Stop (Contains Single Shaft Seal)
Rotation Direction
Clockwise (Right Hand)
Series
M Series
Special Features
Adjustable Max Displacement Stop (Contains Single Shaft Seal)

Product Questions & Answers (1)

Question by: Vince B on Apr 4, 2026, 10:20 AM
For mobile hydraulic circuits, is this pump generally reliable?
Answer by: Customer Support on Apr 6, 2026, 6:03 AM
Its Vickers branding and piston-pump design make it well-suited to fixed and mobile hydraulic circuits where you need reliable displacement control.
