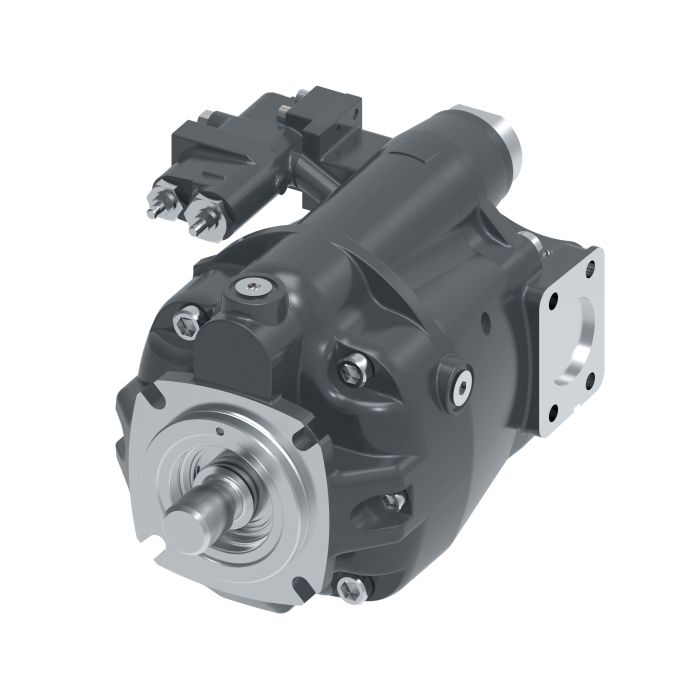

main product photo

VICKERS PVM131ER13GS02AAB2811000AA0A

Ask A Question

Description & Features

The Vickers PVM131ER13GS02AAB2811000AA0A open circuit piston pump is suitable for demanding applications such as mining machinery, injection molding machines, metal forming machines, oil and gas equipment, conveyor lines, primary metals processing, and metal cutting equipment.

This Vickers PVM series pump offers outstanding performance with 50% less noise and is Pro-FX ready. This unit has special features including an adjustable max displacement stop containing a single shaft seal. It has a product width of 9.55 inches.

SKU: 123AL00287A

Supplier Part Number (MPN): 123AL00287A

Alternate Part Numbers: C1JX26

Specifications

Brand
Vickers by Danfoss
Auxiliary Mounting
SAE A 2 Bolt 9T Spline All Models
Control Type
Pressure and Flow Compensator with Bleed Down Orifice
Design Code
A
Drive Shaft Type
Straight Keyed
Housing Material
Iron
Inlet Type
SAE J744-127-4
Main Port Location
Side
Model
PVM131
Mounting Type
4-Bolt Flanged
nmfc
125820
Outlet Type
SAE J744-127-4
Pressure Comp Setting
276 to 284 Bar [4002 to 4118 lbf/sq-in]
Rotation Direction
Clockwise (Right Hand)
Series
M Series
Valve Plate
Industrial (1800 rpm Max)

Product Questions & Answers (2)

Question by: Cody F on May 19, 2025, 4:13 PM
pump's rated for mining and metal forming work, so i'm guessing it can handle some pretty rough duty cycles, that noise reduction claim, is that actually significant or just marketing talk?
Answer by: Customer Support on May 21, 2025, 6:26 AM
Fifty percent less noise is a real engineering outcome for this series, not a throwaway line. Piston pumps at this displacement class can get loud under load, and the PVM series was built to bring that down meaningfully. For environments like metal forming or mining where equipment runs hard and operators are nearby, that reduction matters both for comfort and for meeting shop floor noise standards.
Question by: Ricky A on Jan 15, 2026, 7:59 PM
Reckon this pump would hold up okay in a metal cutting shop, what with all the mess and whatnot?
Answer by: Customer Support on Jan 17, 2026, 6:09 AM
Designed for demanding applications, this Vickers PVM series pump is well-suited for metal cutting equipment and other environments where durability and performance are key.
