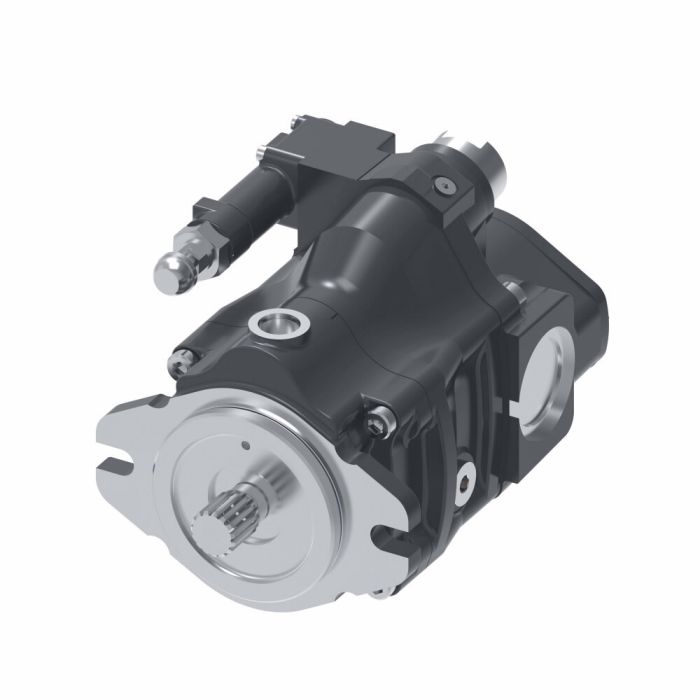

VICKERS PVM020ER02AE01AAA23000000A0A

Ask A Question

Description & Features

The Vickers PVM Series Open Circuit Piston Pump is engineered for demanding industrial applications such as mining machinery, injection molding machines, and oil and gas equipment. This pump is renowned for its significant noise reduction, achieving up to 50% less noise compared to competitors. The Pro-FX ready feature ensures seamless integration into advanced control systems, enhancing operational efficiency.

With a product width of 5.66 inches, this pump includes an adjustable max displacement stop, allowing for fine-tuning to meet specific operational requirements. It is designed with a single shaft seal for enhanced durability and reliability in rugged environments. The Vickers PVM020ER02AE01AAA23000000A0A pump is a trusted choice for applications in metal forming and cutting equipment, conveyor lines, and primary metals processing.

SKU: 123AL00348A

Supplier Part Number (MPN): 123AL00348A

Specifications

Brand
Vickers by Danfoss
Code Title
Vickers Variable Displacement Open Circuit Piston Pumps
Control Type
Pressure Compensator
Design Code
A
Drive Shaft Type
Straight Keyed
Housing Material
Iron
Inlet Size
20
Inlet Type
SAE J744-82-2
Main Port Location
End (Models 018, 020, 045, 050)
Model
PVM020
Mounting Type
2-Bolt Flanged
nmfc
125820
Outlet Size
#12
Outlet Type
SAE J744-82-2
Pressure Comp Setting
227 to 234 Bar [3277 to 3393 lbf/sq-in]
Rotation Direction
Clockwise (Right Hand)
Segment Code
C
Series
M Series
Valve Plate
Industrial (1800 rpm Max)

Product Questions & Answers (2)

Question by: Kurt H on Aug 19, 2025, 10:36 AM
pump's got a real noise problem on our current setup, how much quieter is this one supposed to run compared to what's already out there?
Answer by: Customer Support on Aug 21, 2025, 6:08 AM
Cuts noise by up to 50% compared to competing pumps in its class. For use running injection molding or metal forming equipment where ambient noise is already a concern, that reduction is noticeable and worth factoring into the decision.
Question by: Tony H on Aug 22, 2025, 8:04 PM
Reckon this pump could handle runnin' near constant on a conveyor line, or is it more for start-stop kinda deals?
Answer by: Customer Support on Aug 24, 2025, 1:58 PM
Designed for demanding industrial applications, the Vickers PVM020ER02AE01AAA23000000A0A pump is well-suited for continuous operation in environments like conveyor lines.
