VICKERS PVM050ER05CE01AAA23000000A0A

Ask A Question

Description & Features

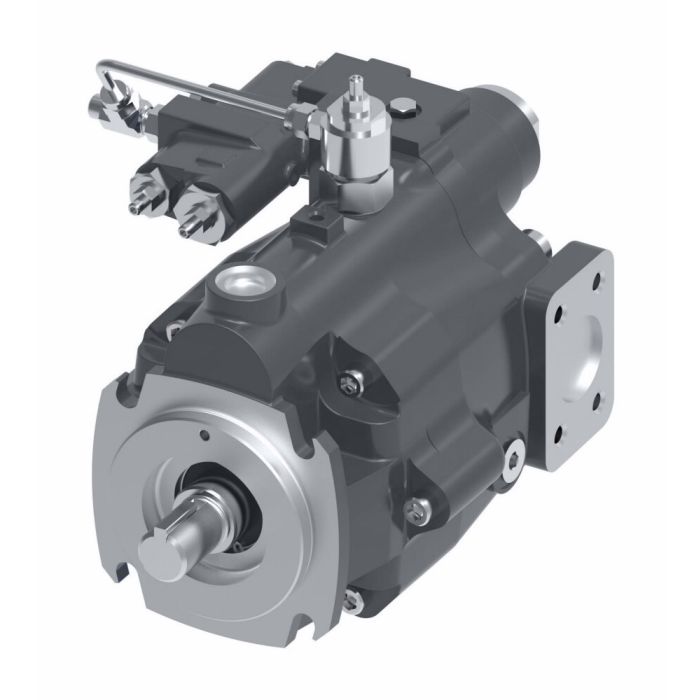

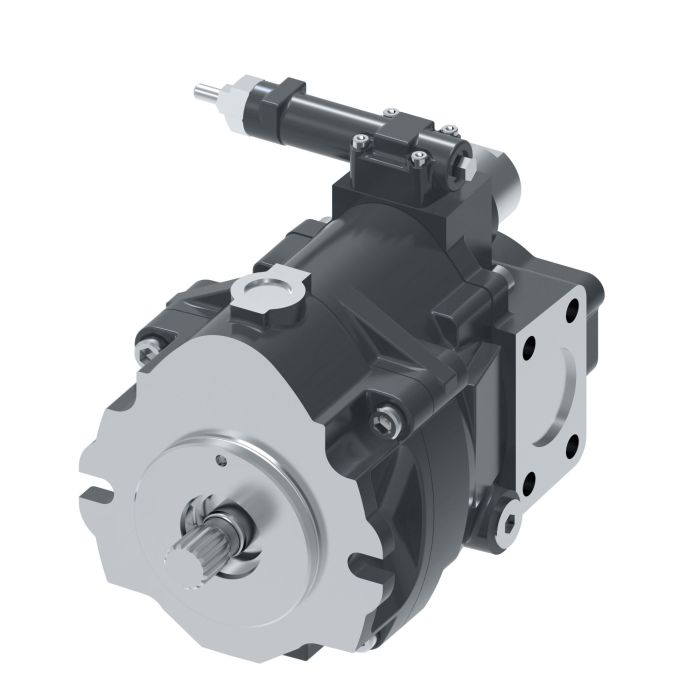

Designed for demanding industrial applications, the Vickers PVM050ER05CE01AAA23000000A0A is an open circuit axial piston pump built for continuous-duty use across a broad range of heavy-duty equipment. It is well-suited for metal forming machines, injection molding equipment, metal cutting machinery, conveyor lines, oil and gas equipment, and mining machinery.

The pump delivers notably reduced operating noise, rated at 50% less than conventional designs, making it a practical choice in environments where sound levels are a consideration. Pro-FX ready compatibility supports integration with advanced control architectures, and the adjustable maximum displacement stop allows output to be tuned to application requirements. The unit contains a single shaft seal configuration.

Manufactured under the Vickers brand by Danfoss/Eaton, this pump reflects the PVM series' established reputation for consistent performance in industrial hydraulic systems.

SKU: 123AL00349A

Supplier Part Number (MPN): 123AL00349A

Specifications

Brand
Vickers by Danfoss
Code Title
Vickers Variable Displacement Open Circuit Piston Pumps
Control Type
Pressure Compensator
Design Code
A
Dimensions
11.93 in L x 8.49 in W x 9.71 in H
Drive Shaft Type
Straight Keyed
Housing Material
Iron
Inlet Size
24
Inlet Type
SAE J744-101-2
Main Port Location
End (Models 018, 020, 045, 050)
Model
PVM050
Mounting Type
2-Bolt Flanged
Outlet Size
#16
Outlet Type
SAE J744-101-2
Pressure Comp Setting
227 to 234 Bar [3277 to 3393 lbf/sq-in]
Rotation Direction
Clockwise (Right Hand)
Series
M Series
Special Features
Adjustable Max Displacement Stop (Contains Single Shaft Seal)
Valve Plate
Industrial (1800 rpm Max)

Product Questions & Answers (1)

Question by: Carl B on Apr 7, 2026, 9:44 AM
pump's got the Pro-FX ready label on it, what does that actually mean for how it gets set up on a machine?
Answer by: Customer Support on Apr 8, 2026, 3:08 PM
Pro-FX ready means the pump is built to integrate with advanced electronic control systems without needing a lot of extra adaptation work. If you're running equipment that uses a Pro-FX control architecture, this pump is already set up to communicate with it. For standard hydraulic circuits that don't use that kind of control platform, it still runs fine, you just won't be using that feature.
