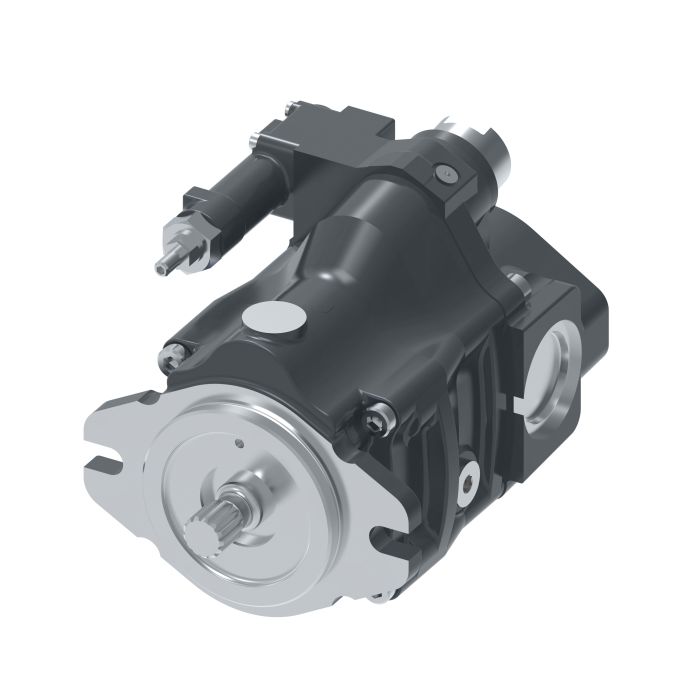

VICKERS PVM018ER05CS01AAA0700000AA0A

Ask A Question

Description & Features

The Vickers PVM018ER05CS01AAA0700000AA0A open circuit piston pump is part of the Vickers by Danfoss / Eaton PVM Series.

This pump is suitable for applications such as metal cutting equipment, metal forming machines, and injection molding machines. It also excels in demanding environments within mining machinery, oil and gas equipment, primary metals processing, and conveyor lines. Benefit from outstanding performance and reduced noise levels, with noise reduction of up to 50%. The Vickers PVM018ER05CS01AAA0700000AA0A features an adjustable maximum displacement stop and a single shaft seal. Pro-FX ready.

SKU: 123AL00362A

Supplier Part Number (MPN): 123AL00362A

Specifications

Brand
Vickers by Danfoss
Auxiliary Mounting
SAE A 2 Bolt 9T Spline All Models
Control Type
Pressure Compensator
Design Code
A
Drive Shaft Type
Straight Keyed
Housing Material
Iron
Inlet Size
20
Inlet Type
SAE J744-101-2
Input Rotation
Clockwise (Right-Hand)
Model
PVM018
Mounting Type
2-Bolt Flanged
nmfc
125820
Outlet Size
#12
Outlet Type
SAE J744-101-2
Port Options
SAE J514 Tube Ports SAE Auxiliary Ports
Pump Special Features
Adjustable Max Displacement Stop (Contains Single Shaft Seal)
Rotation Direction
Clockwise (Right Hand)
Series
M Series
Special Features
Adjustable Max Displacement Stop (Contains Single Shaft Seal)

Product Questions & Answers (2)

Question by: Duane M on May 21, 2025, 4:24 PM
What kind of noise reduction are we talkin' about here?
Answer by: Customer Support on May 23, 2025, 11:47 AM
This Vickers pump cuts down on noise by up to 50%, which can really make a difference in a busy shop.
Question by: Kent C on Aug 13, 2025, 8:37 PM
pump's got a 90-day lead time listed, is that pretty standard for this type of unit or is this one harder to come by than most?
Answer by: Customer Support on Aug 15, 2025, 1:45 PM
Lead times on open circuit piston pumps in this class tend to run long, and 90 days is fairly typical for a made-to-order unit at this specification level. These aren't shelf-stock items at most distributors. If you're planning around a maintenance window or a machine build schedule, getting the order in early is the right move.
