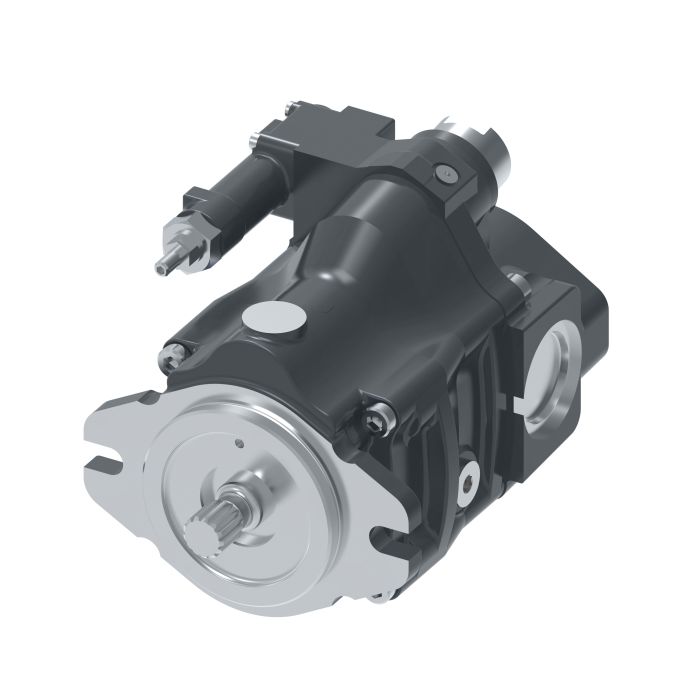

VICKERS PVM020ER05CS01AAA0700000AA0A

Ask A Question

Description & Features

The Vickers PVM020ER05CS01AAA0700000AA0A is an open circuit piston pump suitable for demanding applications, including mining machinery, metal forming, and oil and gas equipment.

This Vickers PVM Series pump offers outstanding performance with reduced noise. It features an adjustable max displacement stop and a single shaft seal, and it is Pro-FX ready.

SKU: 123AL00363A

Supplier Part Number (MPN): 123AL00363A

Specifications

Brand
Vickers by Danfoss
Auxiliary Mounting
SAE A 2 Bolt 9T Spline All Models
Control Type
Pressure Compensator
Design Code
A
Drive Shaft Type
Straight Keyed
Housing Material
Iron
Inlet Size
20
Inlet Type
SAE J744-101-2
Input Rotation
Clockwise (Right-Hand)
Model
PVM020
Mounting Type
2-Bolt Flanged
nmfc
125820
Outlet Size
#12
Outlet Type
SAE J744-101-2
Port Options
SAE J514 Tube Ports SAE Auxiliary Ports
Pump Special Features
Adjustable Max Displacement Stop (Contains Single Shaft Seal)
Rotation Direction
Clockwise (Right Hand)
Series
M Series
Special Features
Adjustable Max Displacement Stop (Contains Single Shaft Seal)

Product Questions & Answers (2)

Question by: Lee C on Nov 15, 2025, 8:39 PM
Can this handle the constant start and stop in a metal cutting setup without wearing out too fast?
Answer by: Customer Support on Nov 17, 2025, 7:08 AM
This open circuit piston pump is definitely built for demanding jobs, including metal cutting equipment where things are always kicking on and off. The Vickers PVM series is known for holding up under pressure.
Question by: Diane J on Jul 14, 2025, 1:29 PM
pump's got an adjustable max displacement stop on it -- does that mean I can dial back the output without swapping anything out, or is that more of a set-it-and-forget-it deal during installation?
Answer by: Customer Support on Jul 15, 2025, 3:09 PM
That stop is meant to be set to your max allowable displacement and left there as a mechanical limit, not really a dynamic on-the-fly control. It keeps the pump from exceeding a set output, which is handy when you're matching the pump to a circuit that can't handle full displacement. You won't need to pull the unit or swap components to make that adjustment, but it's generally configured during setup rather than used as routine operational tuning.
