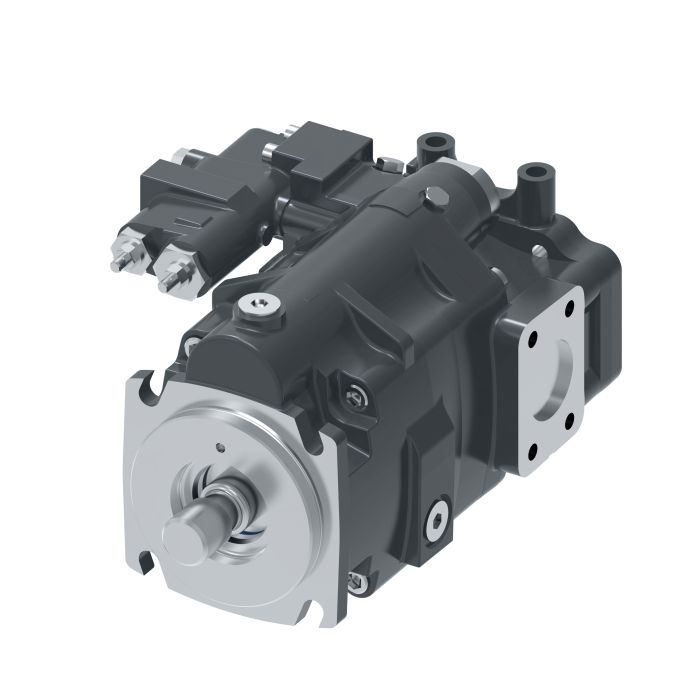

VICKERS PVM057MR11GS02AAC2820000AA0A

Ask A Question

Description & Features

The Eaton Vickers PVM057MR11GS02AAC2820000AA0A is an open circuit piston pump designed for demanding industrial applications. It delivers outstanding performance with 50% less noise than comparable pumps. This Vickers pump is suitable for use in mining machinery, injection molding machines, metal forming machines, oil and gas equipment, conveyor lines, primary metals production, and metal cutting equipment.

Featuring an adjustable max displacement stop and a single shaft seal, this Vickers sub-brand pump is also Pro-FX ready. Its special features make it a reliable choice for a variety of industrial settings.

SKU: 123AL00366A

Supplier Part Number (MPN): 123AL00366A

Specifications

Brand
Vickers by Danfoss
Auxiliary Mounting
SAE A 2 Bolt 9T Spline All Models
Control Type
Pressure and Flow Compensator with Plugged Orifice
Design Code
A
Dimensions
13.7 in L x 10 in W x 7.85 in H
Drive Shaft Type
14 Teeth Splined
Housing Material
Iron
Inlet Type
SAE J744-127-4
Main Port Location
Side
Model
PVM057
Mounting Type
4-Bolt Flanged
Outlet Type
SAE J744-127-4
Pressure Comp Setting
276 to 284 Bar [4002 to 4118 lbf/sq-in]
Rotation Direction
Clockwise (Right Hand)
Series
M Series
Valve Plate
Mobile Equipment Speeds

Product Questions & Answers (2)

Question by: Keith R on Mar 21, 2026, 5:54 PM
pump says it's got an adjustable max displacement stop on it, what's that actually mean for how it runs day to day?
Answer by: Customer Support on Mar 23, 2026, 2:53 PM
That feature lets you physically set a hard limit on how far the pump strokes, which puts a cap on maximum flow output without having to rely solely on control signals. In practice, it gives you a mechanical backstop so the system can't accidentally demand more flow than your circuit is sized for. Useful in metal forming or injection molding setups where you want repeatable output limits without depending entirely on downstream controls to keep things in check.
Question by: Dwayne W on Nov 26, 2025, 6:06 PM
got a conveyor line that’s loud as all get out. is this PVM series pump one of the quieter ones?
Answer by: Customer Support on Nov 28, 2025, 6:28 AM
Noise reduction is one of the called-out features on this PVM Series open circuit piston pump, with “50% less noise” listed along with outstanding performance and Pro-FX readiness.
