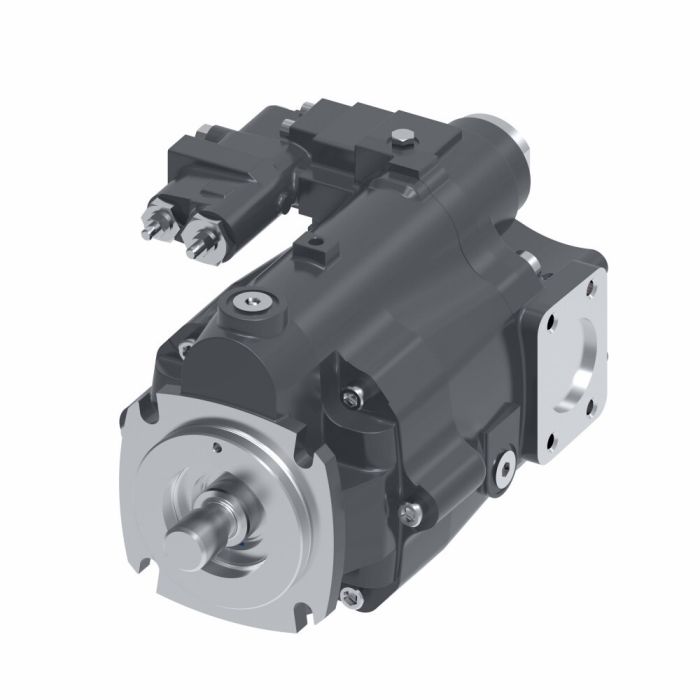

VICKERS PVM098ER09GS02AAE0020000A00A

Ask A Question

Description & Features

Designed for demanding industrial environments, the Vickers PVM098ER09GS02AAE0020000A00A is an open circuit axial piston pump built for applications including injection molding machines, metal forming and cutting equipment, oil and gas systems, conveyor lines, mining machinery, and primary metals processing. Its broad application range reflects a design built around consistent performance under variable load conditions.

This pump features Pro-FX ready control compatibility and delivers notably reduced noise output, up to 50% less than conventional alternatives, making it well suited for facilities where acoustic performance is a consideration alongside hydraulic output. An adjustable maximum displacement stop provides configuration flexibility, and the unit contains a single shaft seal. At 11.41 inches wide, the Vickers Pvm098er09gs02aae0020000a00a fits within standard industrial machine envelopes.

SKU: 123AL00498A

Supplier Part Number (MPN): 123AL00498A

Specifications

Brand
Vickers by Danfoss
Code Title
Vickers Variable Displacement Open Circuit Piston Pumps
Control Type
Pressure and Flow Compensator
Design Code
A
Drive Shaft Type
Straight Keyed
Housing Material
Iron
Inlet Type
SAE J744-127-4
Input Rotation
Clockwise (Right-Hand)
Model
PVM098
Mounting Type
4-Bolt Flanged
Outlet Type
SAE J744-127-4
Port Options
SAE J518 Flanged Ports SAE Auxiliary Ports
Rotation Direction
Clockwise (Right Hand)
Series
M Series
Special Features
Adjustable Max Displacement Stop (Contains Single Shaft Seal)
Valve Plate
Industrial (1800 rpm Max)

Product Questions & Answers (2)

Question by: Brent D on Apr 8, 2025, 4:27 PM
Hey, will this thing fit where the old Vickers pump was? I'm replacing one on a metal forming machine.
Answer by: Customer Support on Apr 10, 2025, 11:11 AM
This PVM098 series pump has a width of 11.41 inches, so you'll want to check that against your existing space to ensure it fits within the machine envelope.
Question by: Tony W on Oct 8, 2025, 2:30 PM
we run a conveyor line and an injection molding setup in the same facility, is this pump built to handle that kind of mixed-use environment or is it more suited for one or the other?
Answer by: Customer Support on Oct 10, 2025, 11:49 AM
Both of those applications fall squarely within what this pump was built for. The PVM098ER09GS02AAE0020000A00A is rated for conveyor lines and injection molding machines alike, along with several other demanding industrial uses including metal forming, oil and gas systems, and mining equipment. Running it across a mixed-use facility is exactly the kind of variable load situation this open circuit axial piston design is meant to handle consistently.
