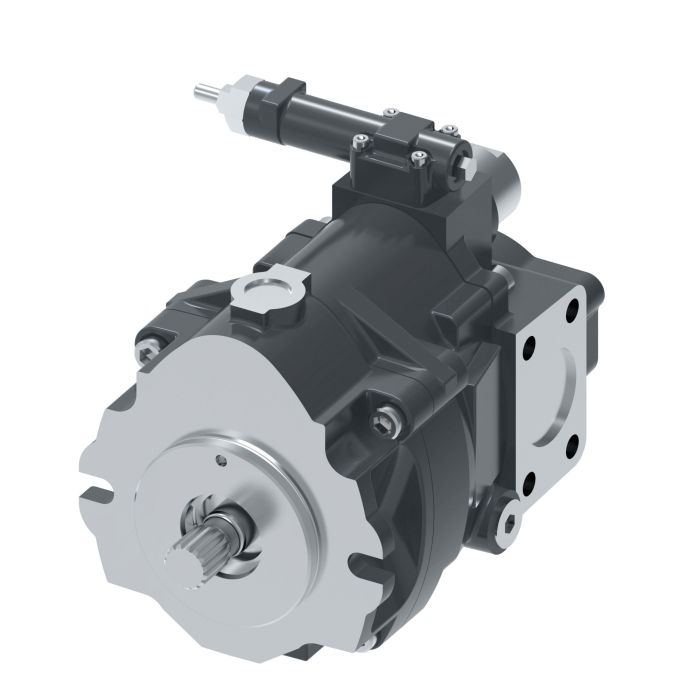

VICKERS PVM050ER05CS01AAA07000000A0A

Ask A Question

Description & Features

Ideal for use in demanding industrial applications, the Vickers PVM050ER05CS01AAA07000000A0A piston pump is designed for high-performance environments such as mining machinery, metal forming machines, and oil and gas equipment. This versatile pump offers an adjustable max displacement stop and a single shaft seal, ensuring reliable operation across diverse settings like conveyor lines and metal cutting equipment.

With a compact width of 8.49 inches, the Vickers PVM050ER05CS01AAA07000000A0A is engineered for efficiency and durability, making it a trusted choice in injection molding machines and primary metals industries. Its robust construction and precision design reflect Vickers' commitment to quality and innovation in the hydraulic sector.

SKU: 123AL00791A

Supplier Part Number (MPN): 123AL00791A

Specifications

Brand
Vickers by Danfoss
Code Title
Vickers Variable Displacement Open Circuit Piston Pumps
Control Type
Pressure Compensator
Design Code
A
Dimensions
11.93 in L x 8.49 in W x 9.71 in H
Drive Shaft Type
Straight Keyed
Housing Material
Iron
Inlet Size
24
Inlet Type
SAE J744-101-2
Main Port Location
Side
Model
PVM050
Mounting Type
2-Bolt Flanged
Outlet Size
#16
Outlet Type
SAE J744-101-2
Pressure Comp Setting
66 to 74 Bar [957 to 1073 lbf/sq-in]
Rotation Direction
Clockwise (Right Hand)
Series
M Series
Special Features
Adjustable Max Displacement Stop (Contains Single Shaft Seal)
Valve Plate
Industrial (1800 rpm Max)

Product Questions & Answers (2)

Question by: Rex S on Dec 28, 2025, 3:41 PM
Reckon this pump would hold up okay in a metal forming shop, running pretty much all day?
Answer by: Customer Support on Dec 30, 2025, 6:45 AM
This Vickers PVM050 piston pump is designed to handle demanding industrial applications, including metal forming. Its robust construction should provide the durability needed for continuous operation.
Question by: Peggy H on Mar 23, 2026, 7:05 PM
pump's got an adjustable max displacement stop on it -- does that mean I can dial back the output if my system don't need full flow all the time?
Answer by: Customer Support on Mar 25, 2026, 6:46 AM
that feature lets you mechanically limit how far the pump strokes, so you're not pushing more fluid than the system calls for. Comes in handy when you're running a circuit that doesn't always demand peak output, or when you're setting up a machine and need to tune things in gradually. It's a physical stop, not an electronic one, so once you've got it set where you want it, it holds that position without any additional controls involved.
