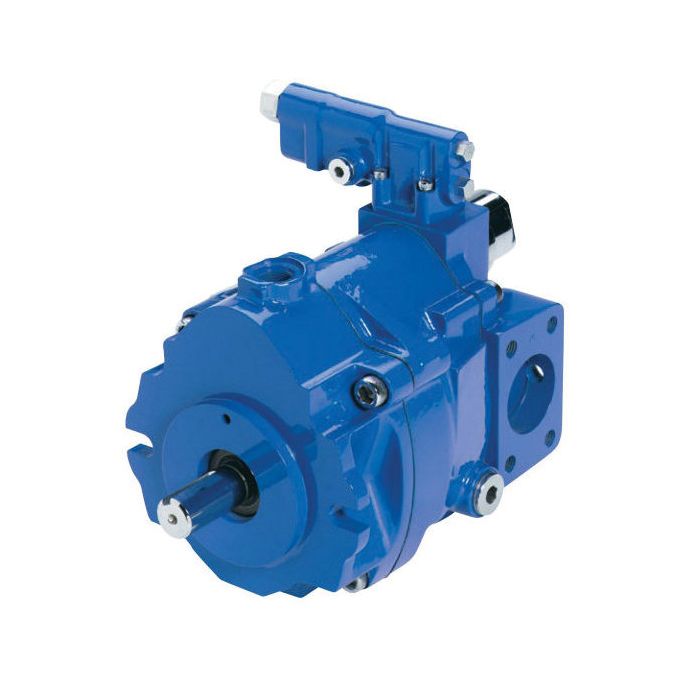

VICKERS PVM074MR11GS02AAB28200000A0A

Ask A Question

Description & Features

Designed for demanding industrial environments, the Vickers PVM074MR11GS02AAB28200000A0A is an advanced axial piston pump ideal for applications such as mining machinery, injection molding machines, and metal forming equipment. Its versatile design also makes it suitable for oil and gas equipment, conveyor lines, and metal cutting machinery. The pump features an adjustable maximum displacement stop and a single shaft seal, ensuring efficient and reliable performance in diverse settings.

With a compact width of 12.04 inches, this Vickers pump integrates seamlessly into various systems, providing robust functionality without compromising space. It belongs to the Industrial OC Piston Pumps category, known for its durability and precision. Trust in the Vickers brand for consistent, high-quality performance across your industrial needs.

SKU: 123AL00956A

Supplier Part Number (MPN): 123AL00956A

Specifications

Brand
Vickers by Danfoss
Auxiliary Mounting
Auxiliary Mount Cover Plate
Control Type
Pressure and Flow Compensator with Bleed Down Orifice
Design Code
A
Dimensions
15.38 in L x 12.04 in W x 8.66 in H
Drive Shaft Type
14 Teeth Splined
Housing Material
Iron
Inlet Type
SAE J744-127-4
Main Port Location
Side
Model
PVM074
Mounting Type
4-Bolt Flanged
Outlet Type
SAE J744-127-4
Pressure Comp Setting
276 to 284 Bar [4002 to 4118 lbf/sq-in]
Rotation Direction
Clockwise (Right Hand)
Series
M Series
Valve Plate
Mobile Equipment Speeds

Product Questions & Answers (1)

Question by: Troy S on Sep 19, 2025, 11:21 AM
got a conveyor line setup and been hunting for a piston pump that'll hold up to regular industrial use without being a beast to fit in. how wide is this Vickers unit?
Answer by: Customer Support on Sep 21, 2025, 8:02 AM
At 12.04 inches wide, it fits into tighter machine footprints than a lot of comparable axial piston pumps in this class. Conveyor line applications are actually one of the listed uses for this pump, so you're in the right territory. The single shaft seal keeps the external profile clean, and if your system needs flow adjustments down the road, the adjustable maximum displacement stop gives you that flexibility without a full swap-out.
