VICKERS PVM074ER09GS02ASA28000000A0A

Ask A Question

Description & Features

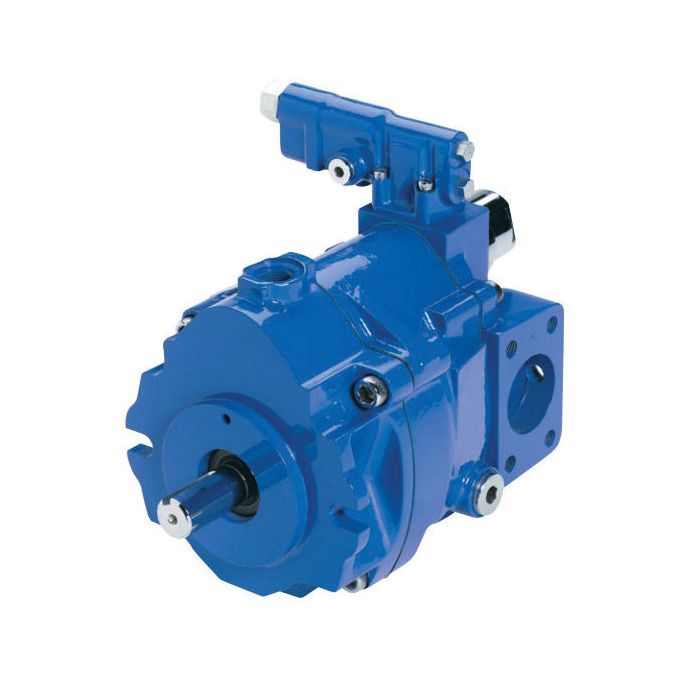

This VICKERS PVM074ER09GS02ASA28000000A0A piston pump is suitable for a variety of demanding applications, including metal cutting equipment, injection molding machines, primary metals processing, and mining machinery.

The pump features a nitrile/Buna-N shaft seal and an adjustable maximum displacement stop for enhanced performance and control. It is also well-suited for use in metal forming machines, oil and gas equipment, and conveyor lines.

SKU: 123AL01521A

Supplier Part Number (MPN): 123AL01521A

Specifications

Brand
Vickers by Danfoss
Auxiliary Mounting
Auxiliary Mount Cover Plate
Control Type
Pressure Compensator
Design Code
A
Dimensions
15.38 in L x 12.04 in W x 8.66 in H
Drive Shaft Type
Straight Keyed
Housing Material
Iron
Inlet Type
SAE J744-127-4
Input Rotation
Clockwise (Right-Hand)
Model
PVM074
Mounting Type
4-Bolt Flanged
Outlet Type
SAE J744-127-4
Port Options
SAE J518 Flanged Ports SAE Auxiliary Ports
Pump Special Features
Nitrile/Buna-N Shaft Seal with Adjustable Max Displacement Stop
Rotation Direction
Clockwise (Right Hand)
Series
M Series
Special Features
Nitrile/Buna-N Shaft Seal With Adjustable Max Displacement Stop

Product Questions & Answers (2)

Question by: Neil A on Dec 24, 2025, 2:43 PM
got a machine running injection molding and we're burning through shaft seals pretty regular, what kind of seal does this pump use?
Answer by: Customer Support on Dec 26, 2025, 6:04 AM
Nitrile/Buna-N is what you've got on the shaft seal with this one. It's a solid general-purpose elastomer for hydraulic applications and holds up well in standard petroleum-based fluid environments, which covers most injection molding setups running conventional hydraulic oil.
Question by: Daryl M on Jul 28, 2025, 4:52 PM
Will this piston pump work alright in a metal cutting machine?
Answer by: Customer Support on Jul 30, 2025, 6:36 AM
It's well-suited for metal cutting equipment, along with injection molding, primary metals processing, and even mining machinery.
