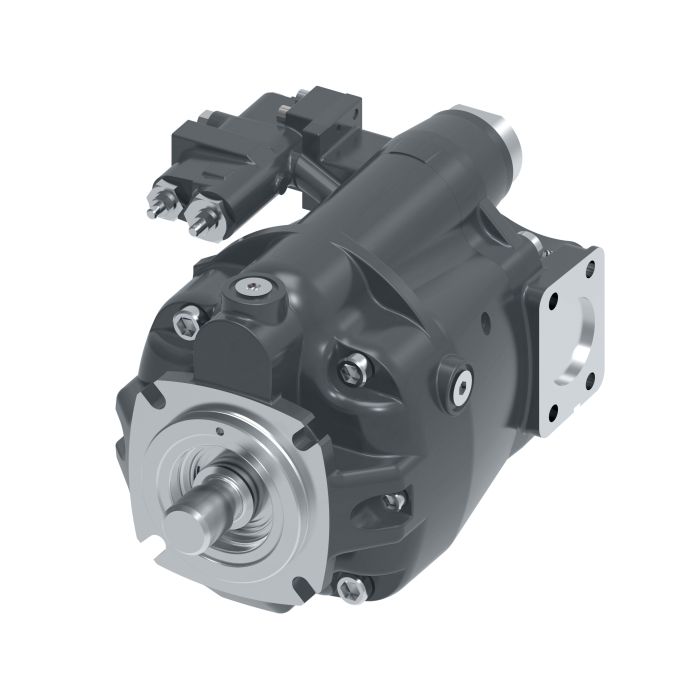

DANFOSS / EATON-PVM131ER09GS02AAC2820000EA0A

Ask A Question

Description & Features

Designed for demanding industrial environments, the Danfoss / Eaton PVM131ER09GS02AAC2820000EA0A is an open circuit axial piston pump from the Vickers PVM Series. It carries an adjustable maximum displacement stop and contains a single shaft seal, giving maintenance technicians a straightforward serviceability advantage in high-cycle applications.

This pump is well suited for use across a broad range of industrial equipment, including metal forming machines, metal cutting equipment, injection molding machines, conveyor lines, primary metals processing, oil and gas equipment, and mining machinery. Pro-FX ready compatibility supports integration with advanced electronic control systems. Rated noise levels run 50% lower than conventional alternatives in its class, making it a practical choice for facilities with sound-level considerations. The Vickers sub-brand designation reflects Eaton's legacy engineering standards carried forward under the Danfoss portfolio.

SKU: 123AL01904A

Supplier Part Number (MPN): 123AL01904A

Specifications

Brand
Vickers by Danfoss
Auxiliary Mounting
SAE C 2-/4 Bolt 14T Spline Models 057 074 098 and 131
Control Type
Pressure and Flow Compensator with Plugged Orifice
Design Code
A
Dimensions
17.49 in L x 9.55 in W x 9.87 in H
Drive Shaft Type
Straight Keyed
Fluid Compatibility
High Water Content Hydraulic Fluid, Petroleum Based Fluid, Phosphate Ester Fluid, Synthetic Fluid
Housing Color
Black
Housing Material
Iron
Inlet Type
SAE J744-127-4
Main Port Location
Side
Model
PVM131
Mounting Type
4-Bolt Flanged
Outlet Type
SAE J744-127-4
Pressure Comp Setting
276 to 284 Bar [4002 to 4118 lbf/sq-in]
Rotation Direction
Clockwise (Right Hand)
Series
M Series
Valve Plate
Industrial (1800 rpm Max)

Product Questions & Answers (1)

Question by: Lance G on Jun 26, 2025, 2:58 PM
We run injection molding machines pretty much around the clock and noise is a real issue on our floor. How does this pump hold up in that kind of environment?
Answer by: Customer Support on Jun 28, 2025, 1:59 PM
Noise-wise, this pump runs about 50% quieter than conventional pumps in its class, which makes a real difference in a production setting where equipment is running all day. It's built for exactly the kind of continuous industrial use you're describing. Injection molding is actually one of the listed applications for this pump, so it's a natural fit for that environment.
